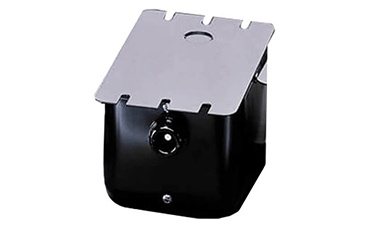

Allanson 1196-NA Ferromagnetic Ignition Transformer for North American
Allanson’s Single Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial gas applications.
SKU 3G-OTH-03234
Also listed as: 1196 NA · 1196-NA
Local availability & support
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
Allanson’s Single Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial gas applications.
Frequently Asked Questions
What is the Allanson 1196-NA ferromagnetic ignition transformer used for?
The Allanson 1196-NA is a single-pole ferromagnetic ignition transformer designed for constant-duty ignition in commercial, residential, and industrial gas burners. It provides a reliable 6000V secondary voltage for North American burner applications, ensuring consistent spark ignition in gas-fired equipment.
What are the specifications of the Allanson 1196-NA ignition transformer?
The Allanson 1196-NA operates at 240V input, 50Hz frequency, with a secondary voltage of 6000V RMS and 20mA secondary short circuit current. It features a single pole, one end ground, internal junction box, and Rajah connector HV terminal. Storage temperature range is -40 to +80 °C, operating -30 to +40 °C.
Where to buy the Allanson 1196-NA in Singapore?
3G Electric supplies the Allanson 1196-NA ferromagnetic ignition transformer to customers in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this North American gas burner component.
How to install the Allanson 1196-NA ignition transformer?
Install the Allanson 1196-NA by mounting it securely and connecting the 240V primary supply to the internal junction box. Ensure the Rajah connector is properly attached to the spark electrode. Maintain a 1/16 to 1/8 inch air gap for reliable ignition. Follow local electrical codes and the manufacturer's datasheet for safe operation.
Used in
Common applications for AllansonAllanson Products
3G Electric supplies Allanson ignition transformers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
