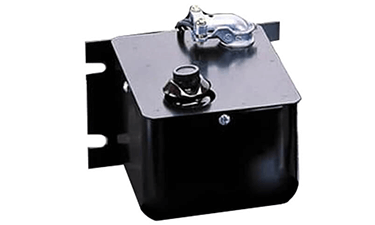

Allanson 1196-N Ferromagnetic Ignition Transformer for Ray Burner
The Allanson 3G-OTH-03122 is a ferromagnetic ignition transformer designed for Ray Burner gas burners. It operates on a 240V, 50Hz input, delivering a 6000 Volt secondary output with 20mA current, and features…
SKU 3G-OTH-03122
Also listed as: 1196 N · 1196-N
Local availability & support
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The Allanson 3G-OTH-03122 is a ferromagnetic ignition transformer designed for Ray Burner gas burners. It operates on a 240V, 50Hz input, delivering a 6000 Volt secondary output with 20mA current, and features one-end grounding and a thumb screw HV terminal.
Frequently Asked Questions
What is the Allanson 1196-N ferromagnetic ignition transformer used for?
The Allanson 1196-N is a ferromagnetic ignition transformer designed for constant-duty ignition in commercial and industrial gas burners, specifically Ray Burner models. It provides a reliable 6000-volt secondary output to ignite gas in burner systems, ensuring consistent flame initiation in heating and process applications.
What are the specifications of the Allanson 1196-N ignition transformer?
The Allanson 1196-N operates at 240 V input, 50 Hz, with a secondary voltage of 6000 V RMS and a secondary short circuit current of 20 mA. It has a thumb screw HV terminal, one-end grounding, and is rated for operating temperatures from -30 °C to +40 °C with 90% relative humidity.
Where to buy the Allanson 1196-N ignition transformer in Singapore?
You can source the Allanson 1196-N ferromagnetic ignition transformer through 3G Electric in Singapore. We supply this Ray Burner-compatible transformer and handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on orders.
How to install the Allanson 1196-N ignition transformer on a Ray Burner?
To install the Allanson 1196-N, ensure the input voltage is 240 V at 50 Hz and ground one end as specified. Connect the thumb screw HV terminal to the burner spark gap, maintaining a 1/16 to 1/8 inch air gap. Follow the burner manufacturer's wiring diagram and safety lockout procedures.
Used in
Common applications for AllansonAllanson Products
3G Electric supplies Allanson ignition transformers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
