Weg 3G-OTH-58451 — Technical Specifications

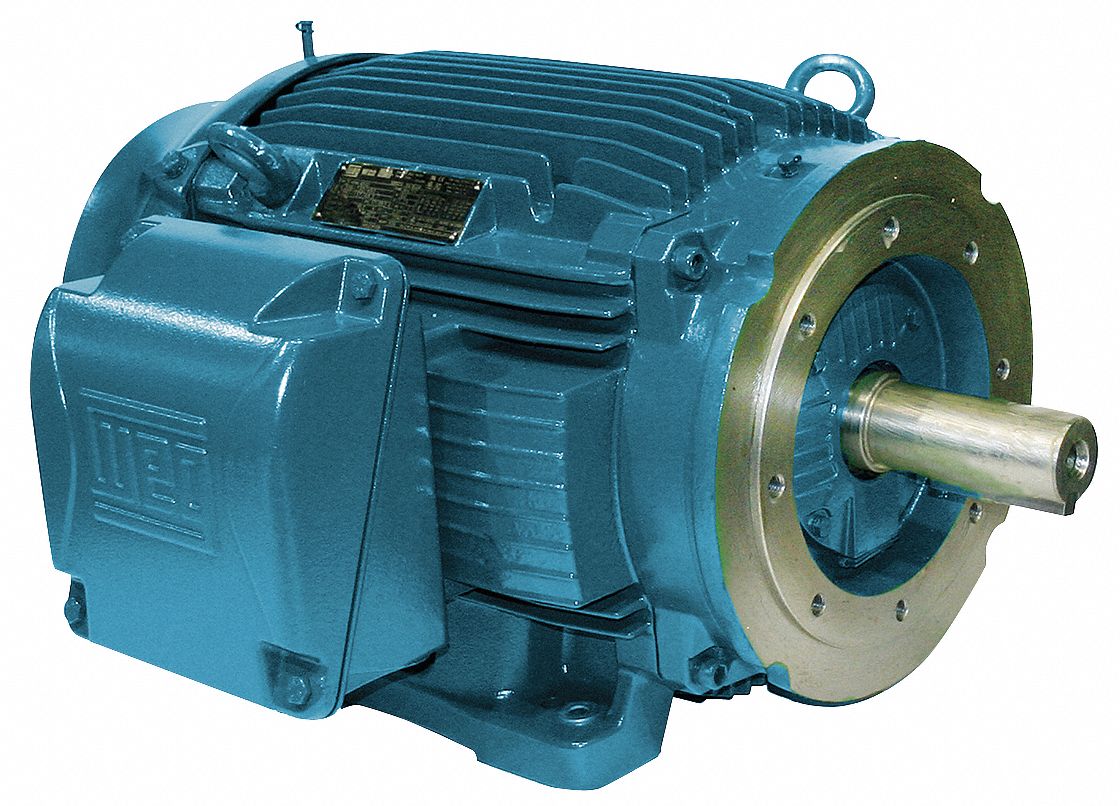

Name: Weg 3G-OTH-58451 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 60 hp, 230/460V AC (MPN 06036ET3E364TSC-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 134.0/67.0 A; Nameplate RPM @ 60 Hz: 3,560 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor is a C-Face with Rigid Base 3-Phase AC motor, model 06036ET3E364TSC-W22. It is a 60 hp, TEFC (Totally Enclosed Fan Cooled) unit with a nameplate RPM of 3,560 RPM at 60 Hz. The motor operates at 230/460V AC with a full load current of 134.0/67.0 A.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 60 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,560 RPM
Manufacturer Part Number	06036ET3E364TSC-W22
Full Load Current @ 60 Hz	134.0/67.0 A
Nameplate Voltage @ 60 Hz	230/460V AC
