Weg 3G-OTH-54933 — Technical Specifications

Name: Weg 3G-OTH-54933 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 15 hp, 230/460V AC (MPN 01536ET3E254TC-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 34.4/17.2 A; Nameplate RPM @ 60 Hz: 3,530 RPM; Motor Enclosure: TEFC.
Brand: Weg

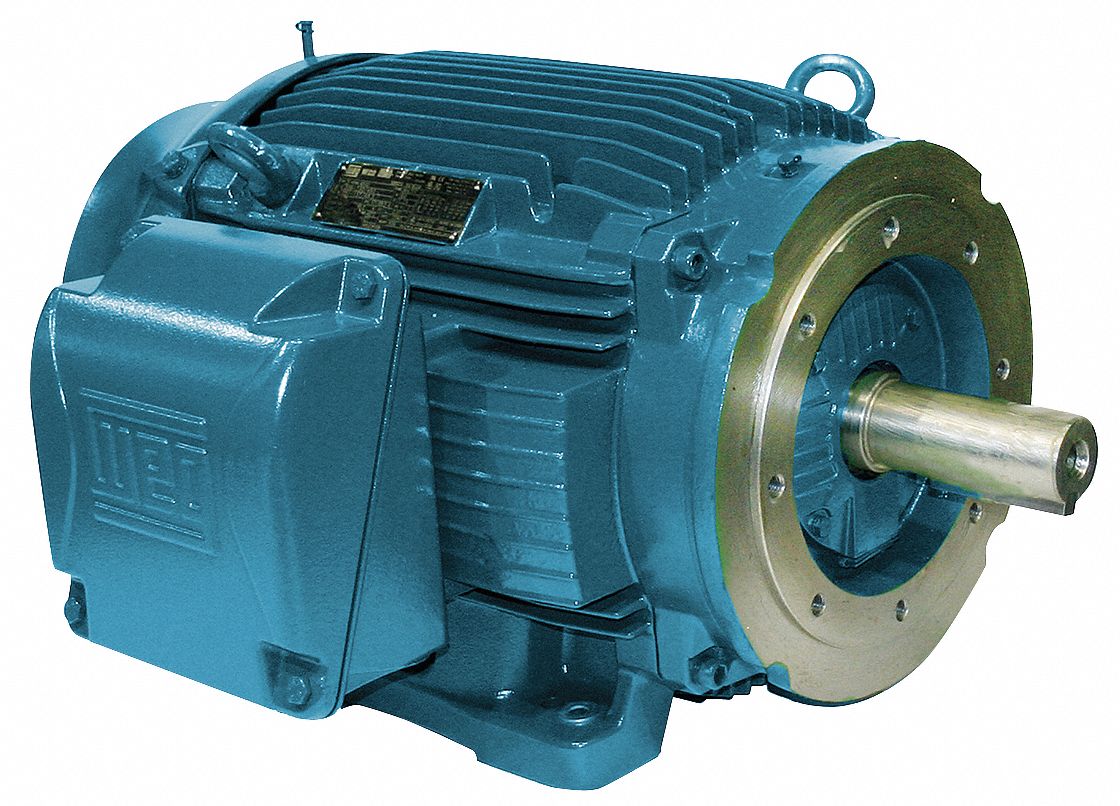

The WEG General Purpose Motor is a C-Face with Rigid Base 3-Phase AC motor, model 01536ET3E254TC-W22. It features a TEFC enclosure, delivers 15 hp, and operates at 3,530 RPM at 60 Hz. The motor is rated for 230/460V AC with a full load current of 34.4/17.2 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 15 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,530 RPM
Manufacturer Part Number	01536ET3E254TC-W22
Full Load Current @ 60 Hz	34.4/17.2 A
Nameplate Voltage @ 60 Hz	230/460V AC
