Weg 3G-OTH-81749 — Technical Specifications

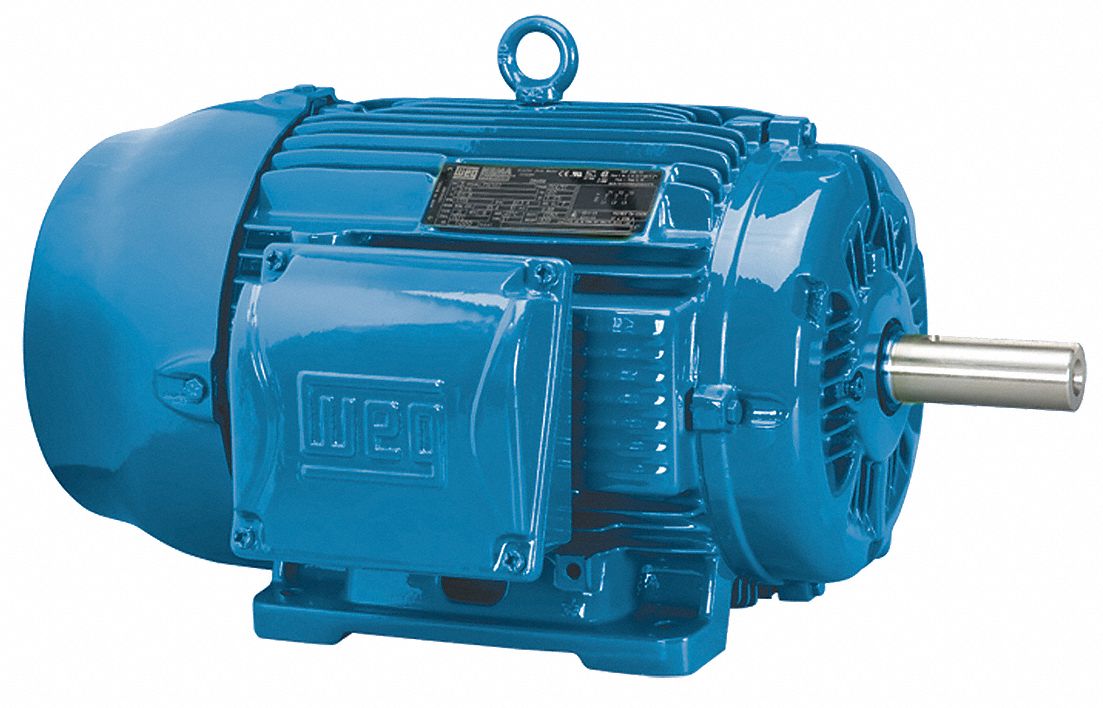

The WEG General Purpose Motor is a rigid base 3-phase AC motor with a TEFC enclosure. It delivers 150 hp at 1,755 RPM (60 Hz) and operates on 460V AC with a full load current of 170.0 A (MPN 15018ET3G445T-W22).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 460V |
| Type | Totally Enclosed Fan Cooled, 150 hp, 1,755 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,755 RPM |
| Manufacturer Part Number | 15018ET3G445T-W22 |
| Full Load Current @ 60 Hz | 170.0 A |
| Nameplate Voltage @ 60 Hz | 460V AC |
