Weg 3G-OTH-76463 — Technical Specifications

Name: Weg 3G-OTH-76463 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 25 hp, 230/460V AC (MPN 02536EG3E284TS-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 57.0/28.5 A; Nameplate RPM @ 60 Hz: 3,550 RPM; Motor Enclosure: TEFC.
Brand: Weg

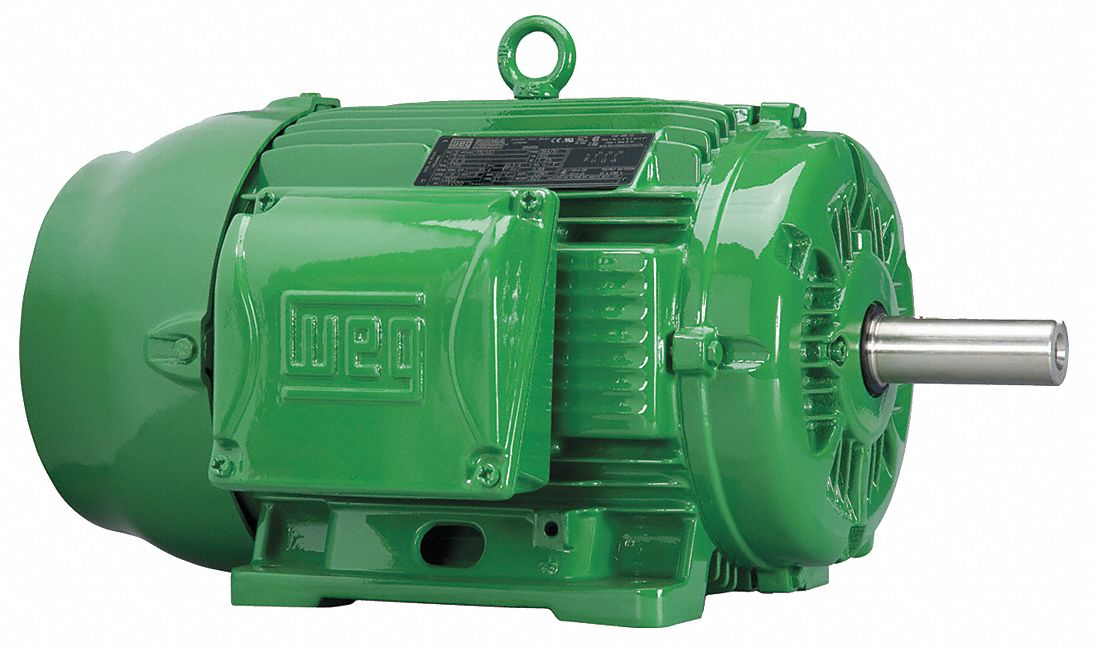

The WEG General Purpose Motor: Rigid Base Mount (MPN 02536EG3E284TS-W22) is a 25 hp, rigid base 3-phase AC motor with a TEFC enclosure. It operates at 3,550 RPM at 60 Hz and is rated for 230/460V AC with a full load current of 57.0/28.5 A.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 25 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,550 RPM
Manufacturer Part Number	02536EG3E284TS-W22
Full Load Current @ 60 Hz	57.0/28.5 A
Nameplate Voltage @ 60 Hz	230/460V AC
