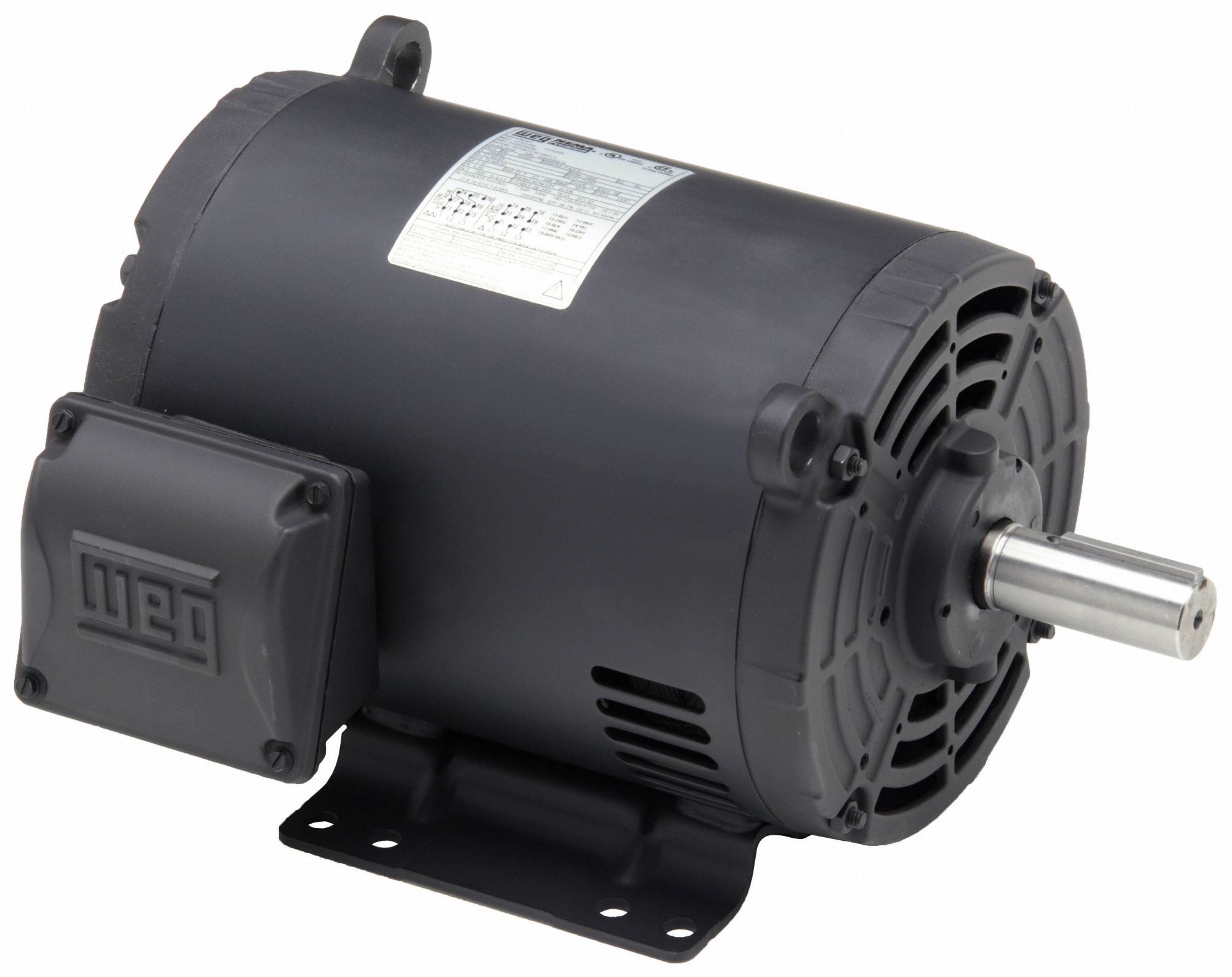

Weg 3G-OTH-59715 — Technical Specifications

Name: Weg 3G-OTH-59715 WEG General Purpose Motor: Rigid Base Mount, Open Drip Proof, 7 1/2 hp, 230/460V AC, 3,500 RPM (MPN 00736OT3E184T-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 17.3/8.67 A; Nameplate RPM @ 60 Hz: 3,500 RPM; Motor Enclosure: ODP.
Brand: Weg

The WEG General Purpose Motor: Rigid Base Mount is a Rigid Base 3-Phase General Purpose AC Motor with an ODP enclosure. It is rated at 7 1/2 hp, 3,500 RPM at 60 Hz, and 230/460V AC with a full load current of 17.3/8.67 A at 60 Hz (MPN 00736OT3E184T-S).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Open Drip Proof, 7 1/2 hp, 3,500 RPM
Brand	WEG
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	3,500 RPM
Manufacturer Part Number	00736OT3E184T-S
Full Load Current @ 60 Hz	17.3/8.67 A
Nameplate Voltage @ 60 Hz	230/460V AC
