U.s. Motors 3G-OTH-71599 — Technical Specifications

Name: U.s. Motors 3G-OTH-71599 U.S. MOTORS General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 1 hp, 1,725 RPM (MPN T1P2AHZ). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 208V AC; Full Load Current @ 60 Hz: 3.3-3.2/1.5 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

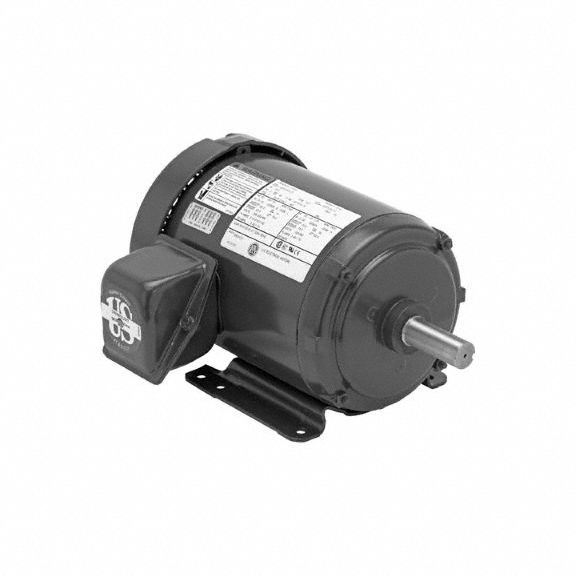

The U.S. MOTORS Rigid Base 3-Phase General Purpose AC Motor (SKU 263W68, MPN T1P2AHZ) is a TEFC (Totally Enclosed Fan Cooled) motor rated at 1 hp with a nameplate speed of 1,725 RPM at 60 Hz. It operates on 208V AC and draws a full load current of 3.3-3.2/1.5 A at 60 Hz. This rigid base mount motor is designed for general purpose industrial applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 1 hp, 1,725 RPM
Brand	U.S. MOTORS
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	T1P2AHZ
Full Load Current @ 60 Hz	3.3-3.2/1.5 A
Nameplate Voltage @ 60 Hz	208V AC
MOTORS General Purpose Motor	Rigid Base Mount
