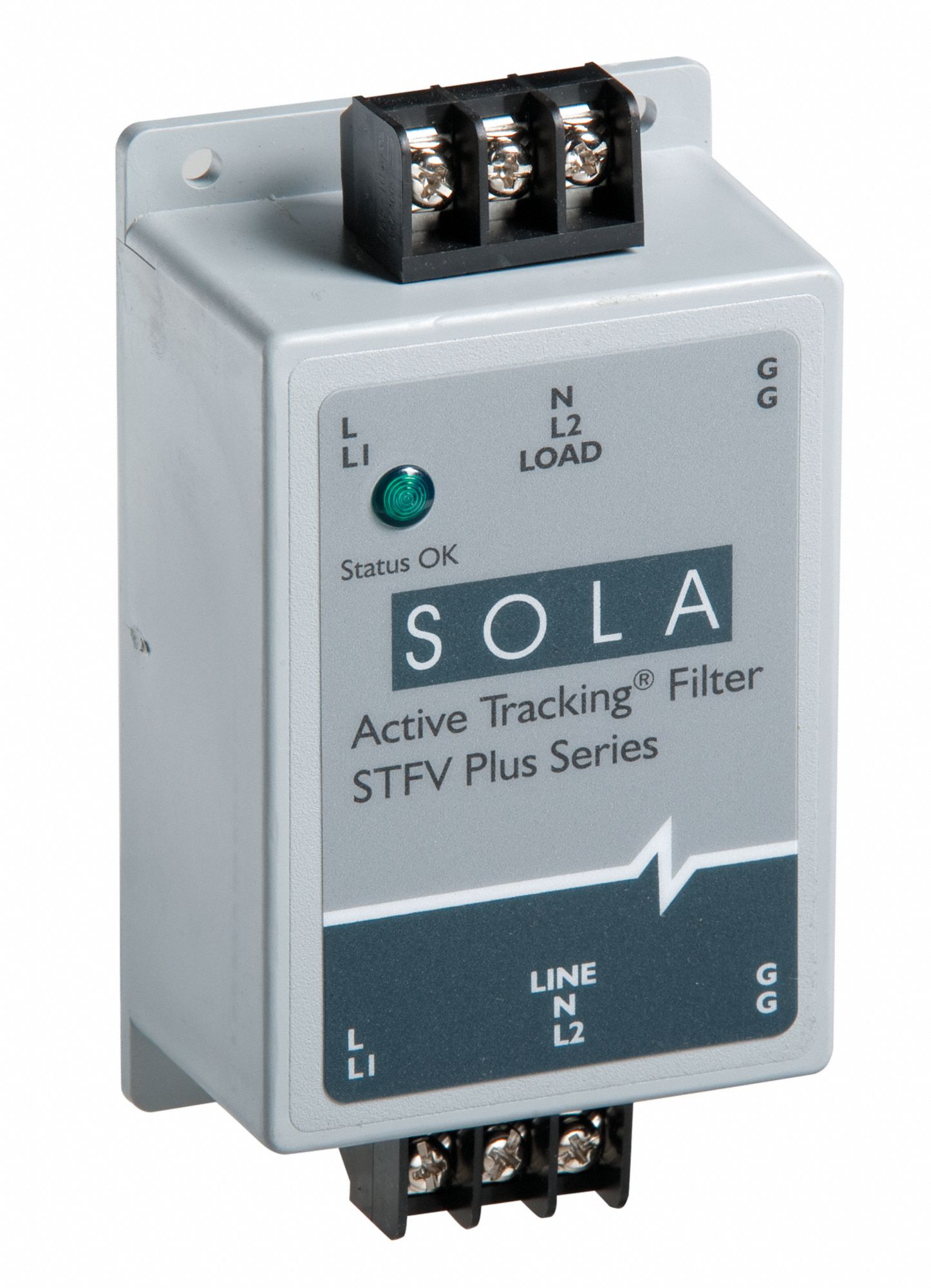

Solahd 3G-OTH-23180 — Technical Specifications

Name: Solahd 3G-OTH-23180 SOLAHD Surge Protection Device: Single Phase, 120V AC, 1 Poles, 2 + Ground Wires, L-G/L-N/N-G (MPN STFV30010N). Key specifications — Voltage: 120V AC; Number of Wires: 2 Wires + Ground; Modes of Protection: N-G; Max. Continuing Operating Voltage: 150 V AC; Short Circuit Current Rating: Not Rated; Filtering: Yes; Enclosure Material: Epoxy Encapsulated Plastic; Mounting Style: Surface.
Brand: Solahd

The SOLAHD Surge Protection Device is a single-phase, internal surface-mount SPD designed for 120V AC systems. It features N-G mode protection with a maximum continuous operating voltage of 150 V AC, supports 2 wires plus ground, and includes filtering. The unit is housed in an epoxy encapsulated plastic enclosure.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Type	2 + Ground Wires, L-G/L-N/N-G
Brand	SOLAHD
Poles	1
Voltage	120V AC
Filtering	Yes
Mounting Style	Surface
Number Of Wires	2 Wires + Ground
Enclosure Material	Epoxy Encapsulated Plastic
Modes Of Protection	N-G
Manufacturer Part Number	STFV30010N
Short Circuit Current Rating	Not Rated
Max. Continuing Operating Voltage	150 V AC
