Smc 3G-OTH-155228 — Technical Specifications

Name: Smc 3G-OTH-155228 SMC Bellows Cup: Bellows, M5 x 0.8, 15 mm Pad Dia, NBR, Black, 50, 14.5 mm Pad Ht, ZP2 (MPN ZP2-TB15MBN-H5). Key specifications — attr1019101: ZP2-TB15MBN-H5; attr1019103: SMC; attr1019107: 50.
Brand: Smc

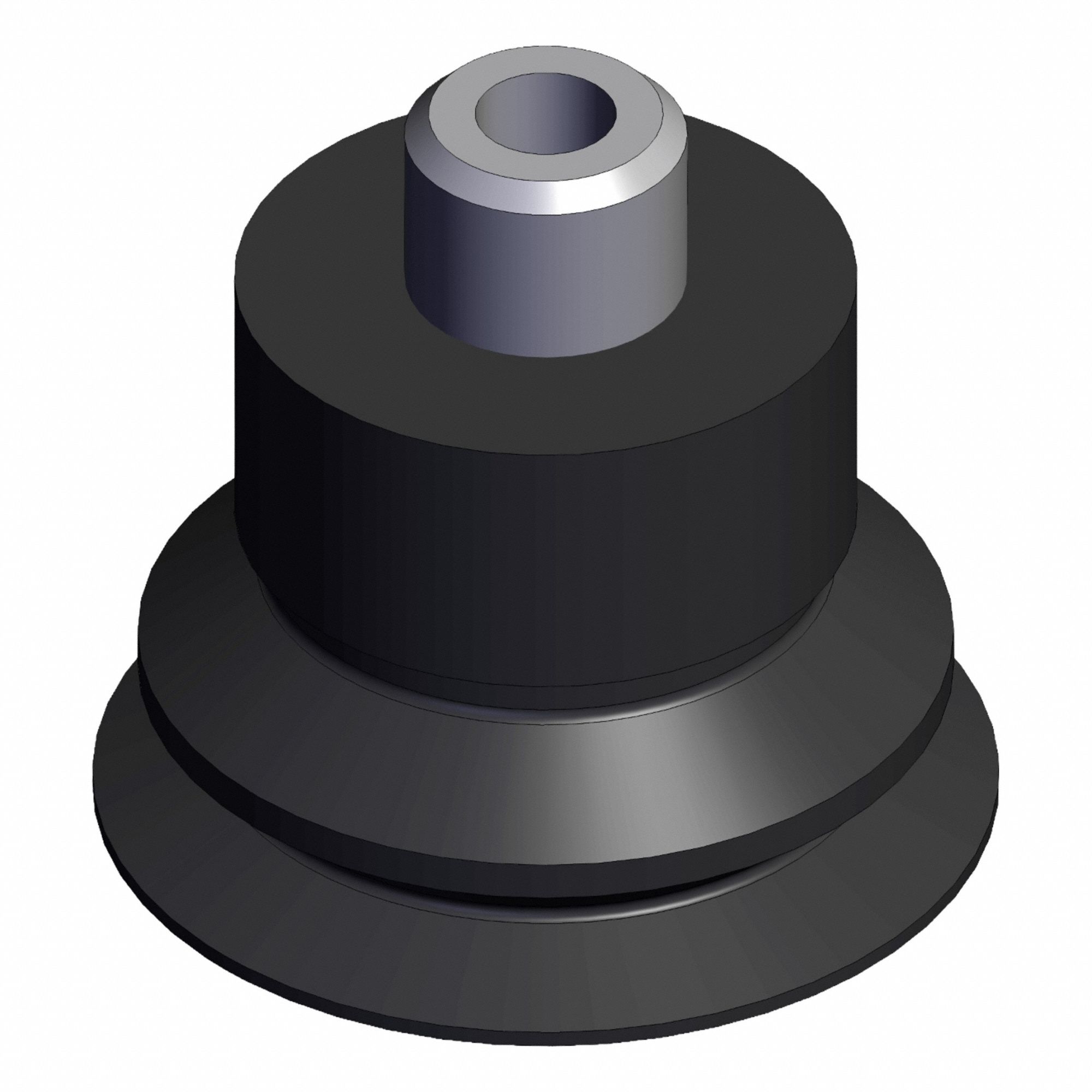

The SMC ZP2-TB15MBN-H5 is a bellows-type vacuum pad assembly designed for automotive industry applications. This assembly features a 15 mm pad diameter, 14.5 mm pad height, M5 x 0.8 thread, and is constructed from NBR material in black. The unit has a quantity of 50.

View Product & Quote

Technical Specifications

Parameter	Value
Type	M5 x 0.8, NBR, Black, 50, ZP2
Pad Ht	14.5 mm
Pad Dia	15 mm
Manufacturer Part Number	ZP2-TB15MBN-H5
