Schneider 3G-OTH-39135 — Technical Specifications

Name: Schneider 3G-OTH-39135 SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V DC, DPDT, 8 Pins/Terminals (MPN 782XBXM4L-24D). Key specifications — Brand: SCHNEIDER; Base Type: Square; Mounting Style: Socket; Electrical Connection: Faston Terminal; Manufacturer Part Number: 782XBXM4L-24D; Operating Current: 15 A at 28V (NO); Series: 782 Series.
Brand: Schneider

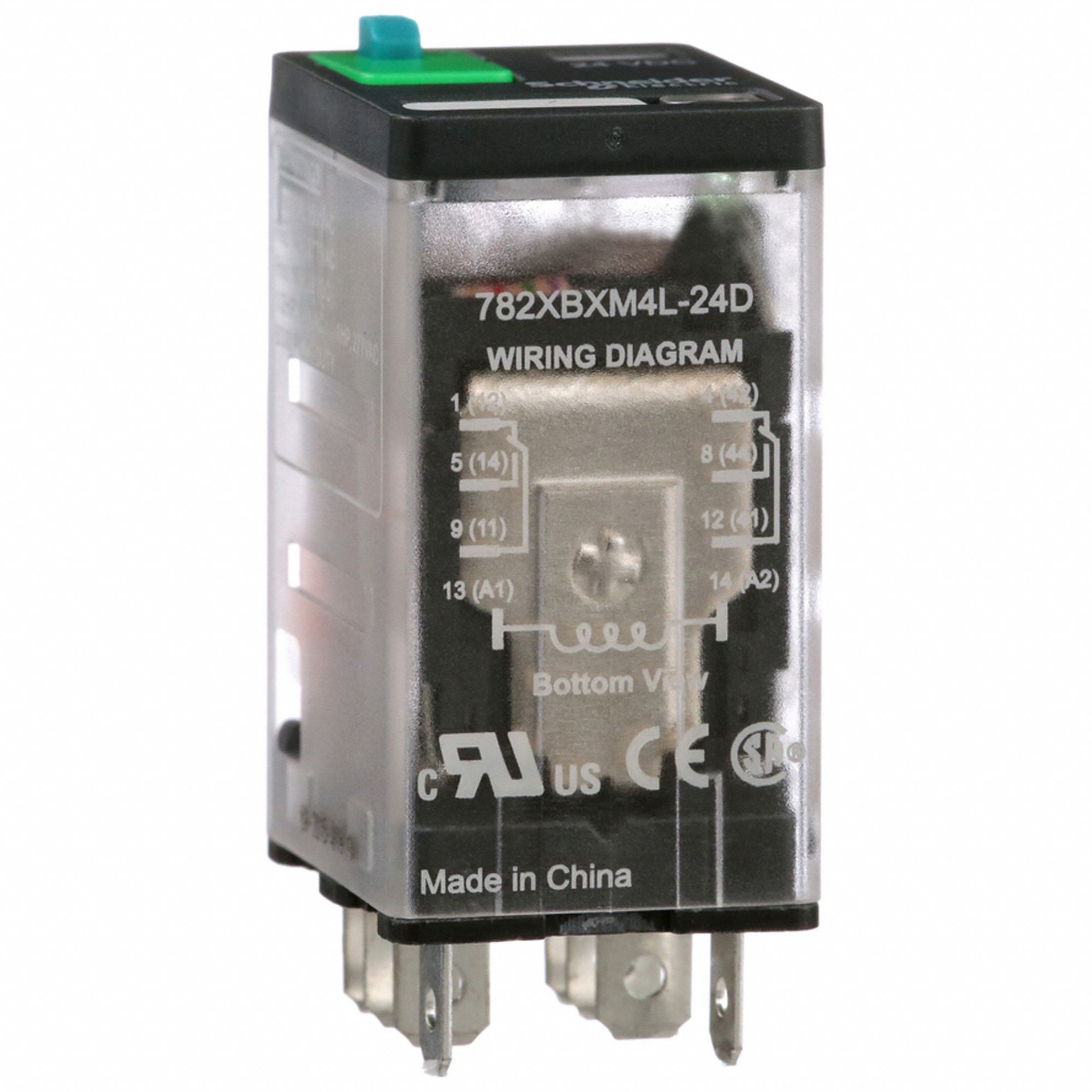

The SCHNEIDER 782 Series General Purpose Relay is a socket-mounted relay with a square base and DPDT contact configuration. It features a 15 A operating current at 28V (NO), a 24V DC coil, and Faston terminal electrical connections. This relay has 8 pins/terminals and is identified by manufacturer part number 782XBXM4L-24D.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	SCHNEIDER
Series	782 Series
Base Type	Square
Mounting Style	Socket
Operating Current	15 A at 28V (NO)
Electrical Connection	Faston Terminal
Manufacturer Part Number	782XBXM4L-24D
