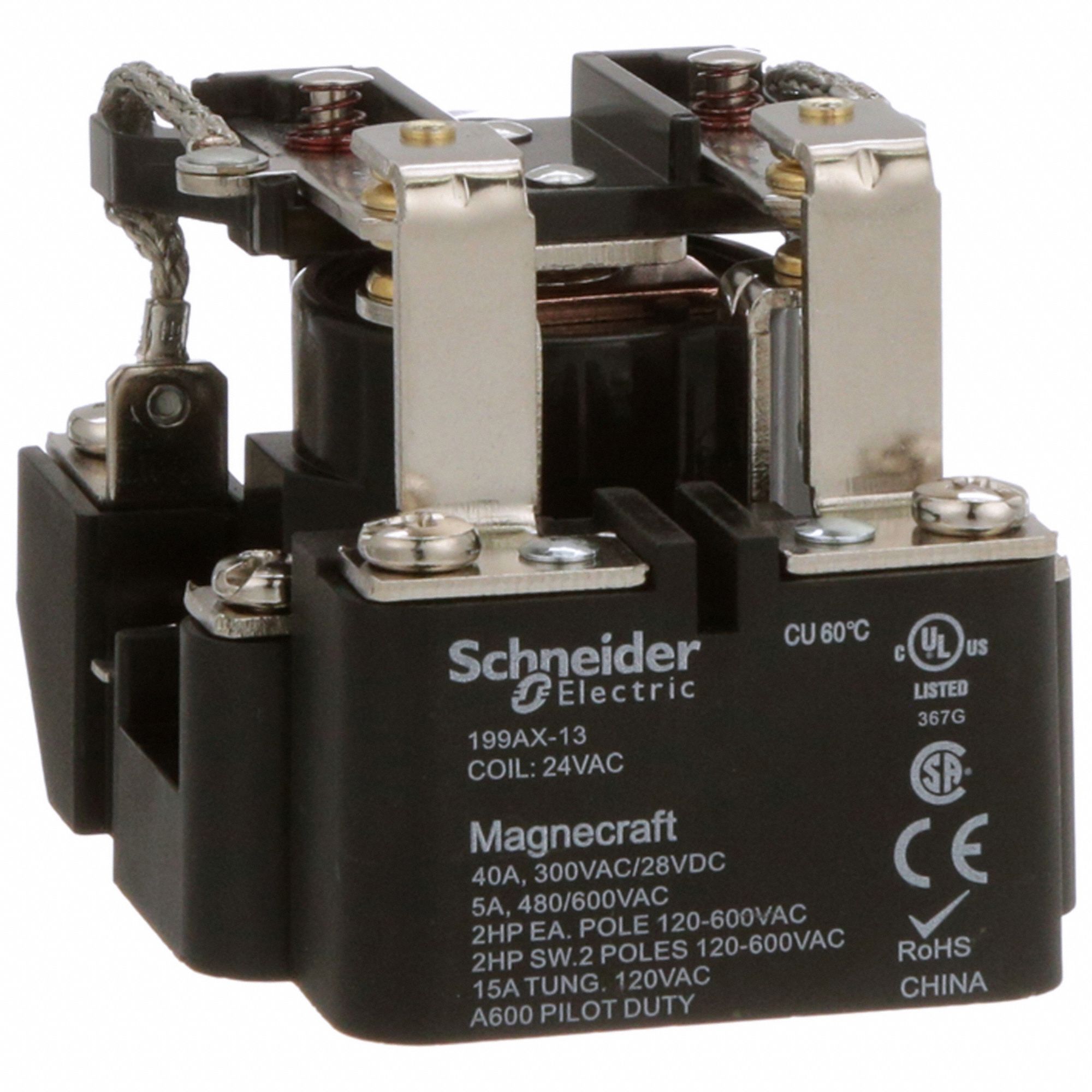

Schneider 3G-OTH-37670 — Technical Specifications
The SCHNEIDER Open Power Relay, part of the 199 Power Series, is a surface-mounted relay with an octal base and screw terminal electrical connection. It features a DPDT contact configuration, rated for 40 A at 24V AC, with an operating current of 5 A at 480V AC for resistive loads. This relay has 8 pins/terminals and is identified by manufacturer part number 199AX-13.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 24V |
| Type | DPDT |
| Brand | SCHNEIDER |
| Series | 199 Power Series |
| Base Type | Octal |
| Current Rating | 40 A |
| Mounting Style | Surface |
| Pins/Terminals | 8 |
| Operating Current | 5 A at 480V AC (Resistive Load) |
| Electrical Connection | Screw Terminal |
| Manufacturer Part Number | 199AX-13 |
