Schneider 3G-OTH-34265 — Technical Specifications

Name: Schneider 3G-OTH-34265 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Short Lever, 1NO/1NC, Metallic (MPN XB4FK123B5). Key specifications — AC Contact Rating: 1.2 A @ 600 V; Action: Maintained/Maintained; Cam: No Cam Included; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Short-Handled Knob; Operator Illumination: Illuminated.
Brand: Schneider

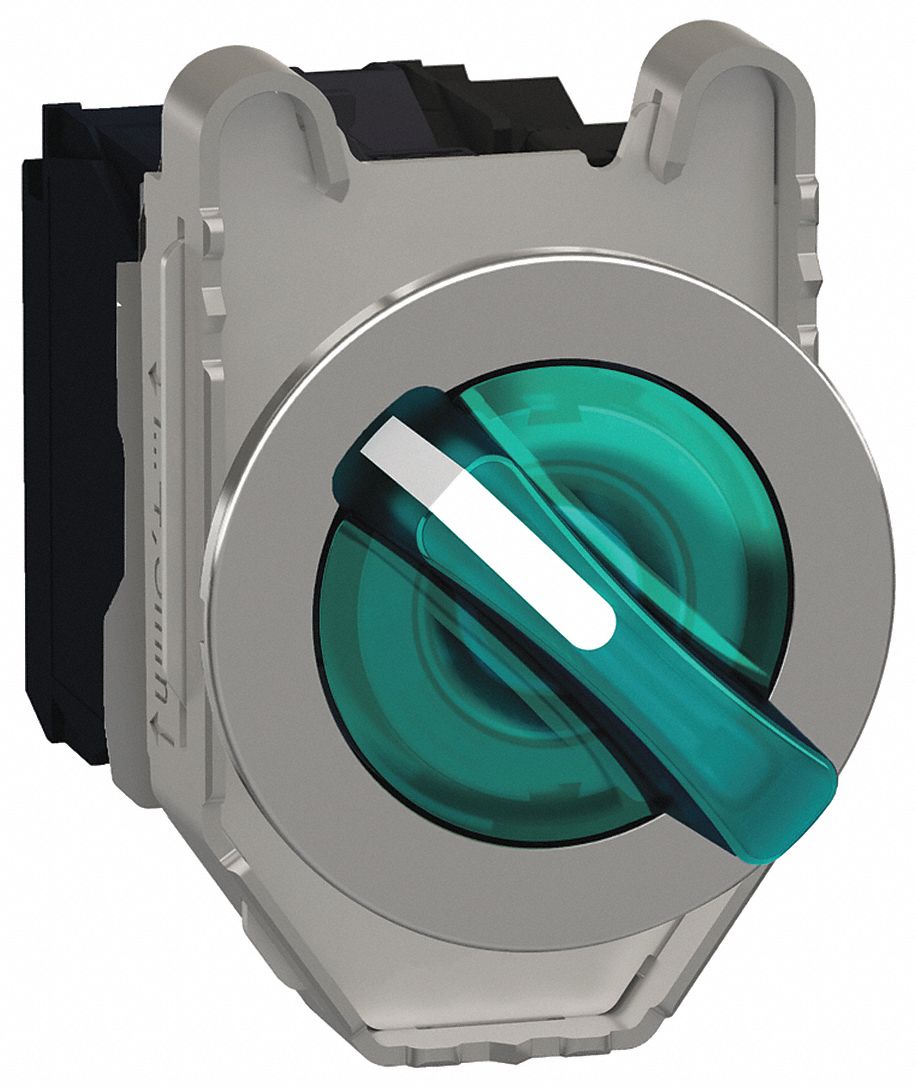

The SCHNEIDER XB4 series illuminated selector switch (SKU 55XA13, MPN XB4FK123B5) is a 30 mm panel-mounting device with a short-handled knob operator head made of plastic and a metallic bezel. It features a maintained/maintained action with two positions (Off/On), no cam included, and is illuminated. Its electrical ratings are 1.2 A at 600 V AC and 0.1 A at 600 V DC, and it is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	No Cam Included
Type	Short Lever, 1NO/1NC, Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained
Series	XB4
Positions	2
AC Contact Rating	1.2 A @ 600 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	XB4FK123B5
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	Off
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
