Schneider 3G-OTH-42032 — Technical Specifications

Name: Schneider 3G-OTH-42032 SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 240V AC, DPDT, A Socket (MPN 750XBXRC-240A). Key specifications — Brand: SCHNEIDER; Base Type: Octal; Mounting Style: Plug-In; Pin Shape: Round; Electrical Connection: 8-Pin Terminal; Manufacturer Part Number: 750XBXRC-240A; Operating Current: 10 A at 30V DC (Resistive Load Conforming to UL); Series: 750R Series.
Brand: Schneider

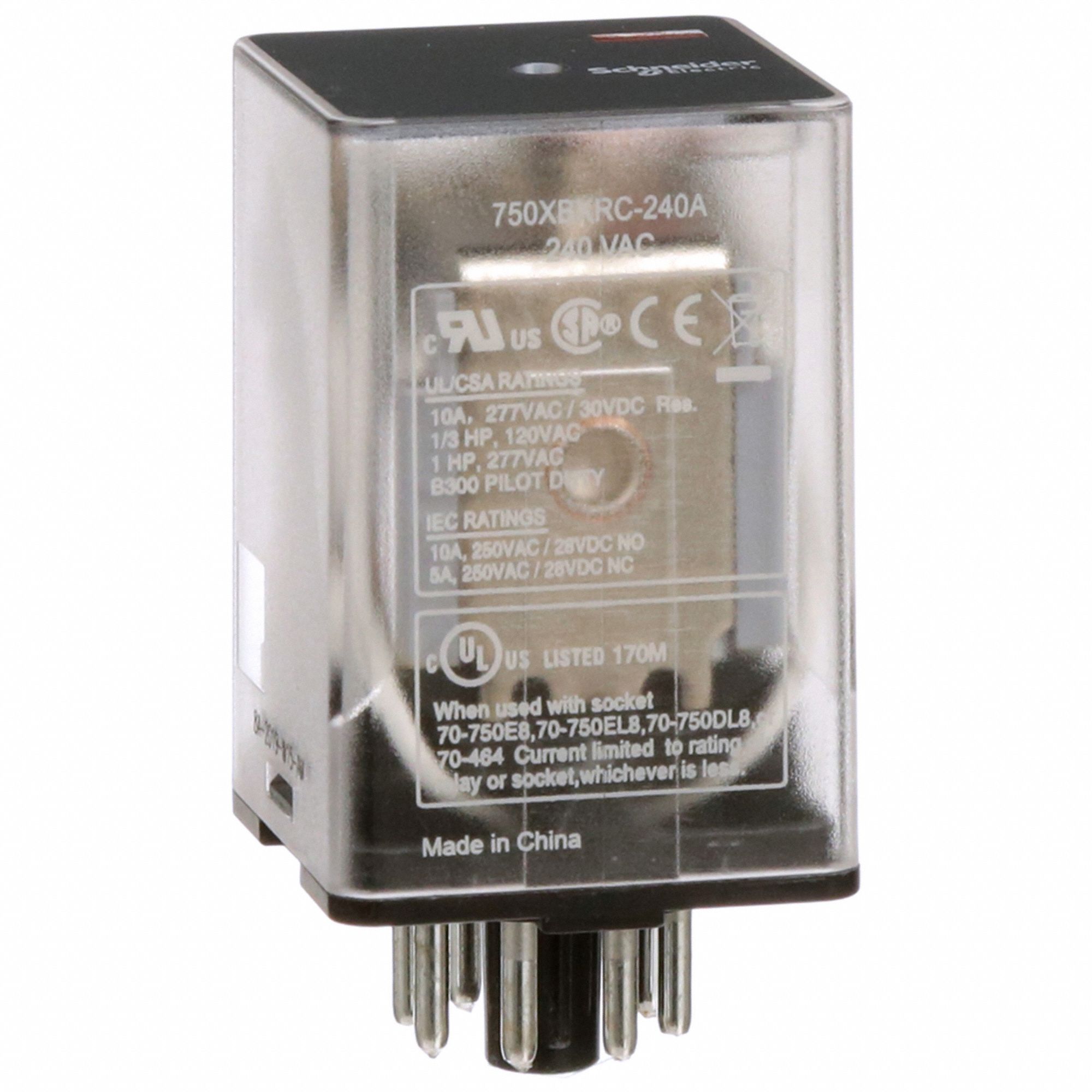

The SCHNEIDER General Purpose Relay: Socket Mounted is a plug-in relay from the 750R Series with an octal base and round pins. It features an 8-pin terminal electrical connection, a DPDT contact configuration, and an operating current of 10 A at 30V DC (resistive load conforming to UL) with a 240V AC coil voltage. The relay is socket mounted and identified by manufacturer part number 750XBXRC-240A.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	SCHNEIDER
Series	750R Series
Base Type	Octal
Pin Shape	Round
Mounting Style	Plug-In
Operating Current	10 A at 30V DC (Resistive Load Conforming to UL)
Electrical Connection	8-Pin Terminal
Manufacturer Part Number	750XBXRC-240A
