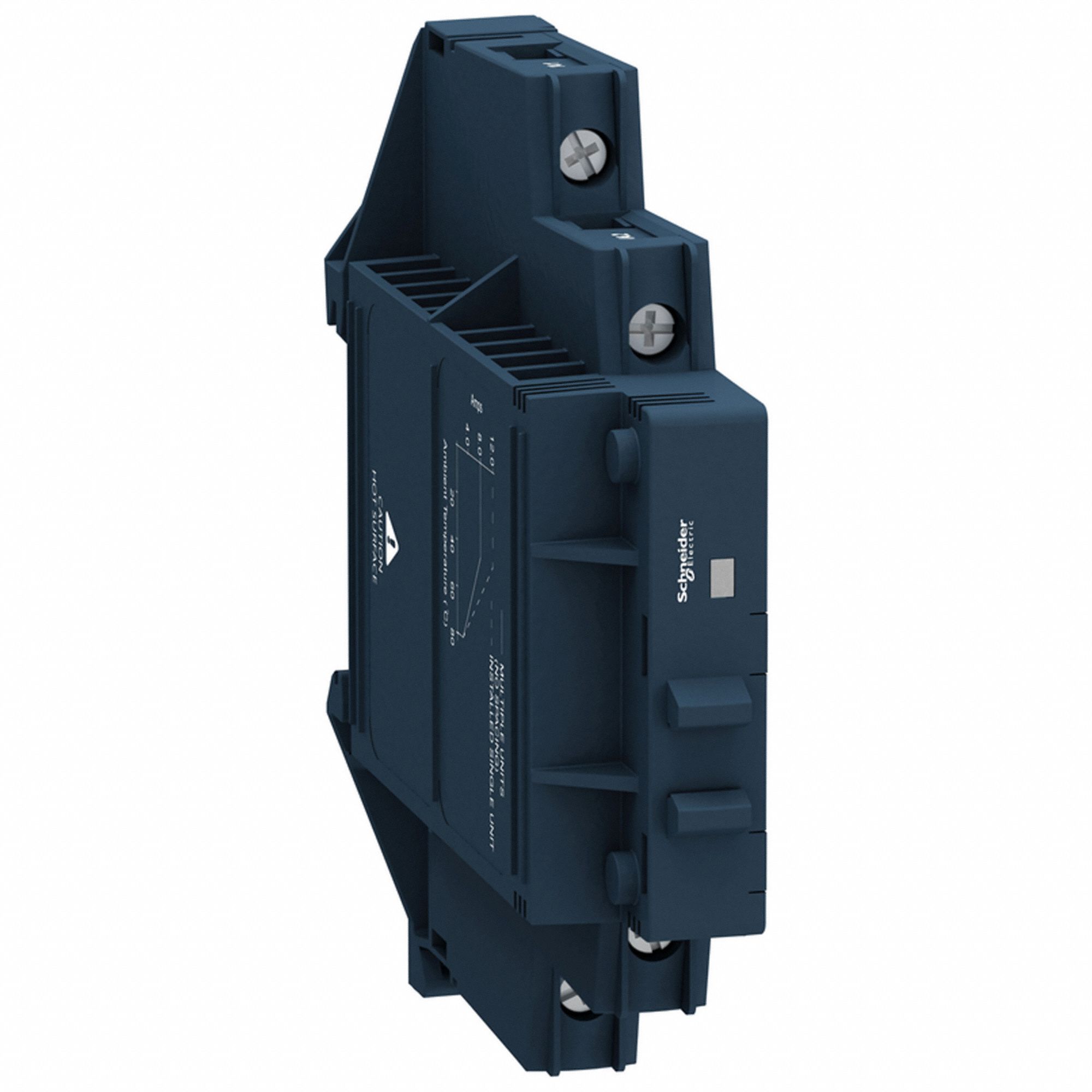

Schneider 3G-OTH-36603 — Technical Specifications

Name: Schneider 3G-OTH-36603 SCHNEIDER Solid State Relay: DIN-Rail Mounted, 12 A Max Output Current, MOSFET, DC Output (MPN SSM1D212BD). Key specifications — Brand: SCHNEIDER; Current Type: DC; Electrical Connection: Screw Clamp; Finger Safe: Yes; Input Current: 9 to 11 mA; Maximum Output Current without Heat Sink: 12 A; Mounting Style: DIN Rail; Output Voltage: 1 to 60V DC.
Brand: Schneider

The SCHNEIDER Solid State Relay is a DIN-Rail Mounted relay (MPN SSM1D212BD) featuring a DC output with a Form A switch configuration. It delivers an output voltage of 1 to 60V DC and a maximum output current without heat sink of 12 A, with an input current of 9 to 11 mA. The relay uses a screw clamp electrical connection and is finger safe for enhanced safety.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	SCHNEIDER
Finger Safe	Yes
Current Type	DC
Input Current	9 to 11 mA
Mounting Style	DIN Rail
Output Voltage	1 to 60V DC
Switch Configuration	Form A
Voltage/Current Type	DC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	SSM1D212BD
Maximum Output Current Without Heat Sink	12 A
