Nicholson 3G-OTH-71217 — Technical Specifications

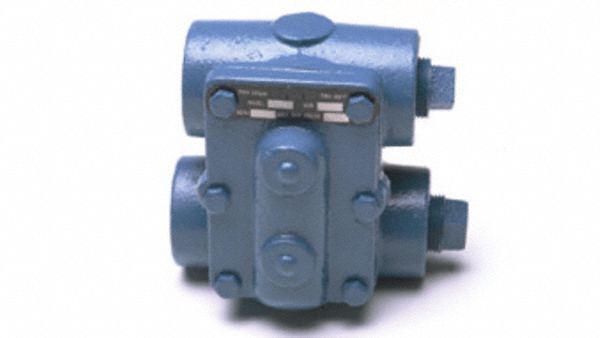

The NICHOLSON FTN series Cast Iron H-Pattern Float & Thermostatic Steam Trap (SKU 20CA75) is a horizontal-installation steam trap with a cast iron float. It features a 2-inch FNPT connection, a maximum capacity of 10,000 lb/hr, a maximum pressure of 30 psi, and a maximum temperature of 450°F.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 2 in |
| Max. | 30 psi |
| Type | 10,000 lb/hr, H Pattern |
| Brand | NICHOLSON |
| Float Material | Cast Iron |
| Manufacturer Series | FTN |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FTN-C2H9A-FTN 2" NPT CI 30PSI |
