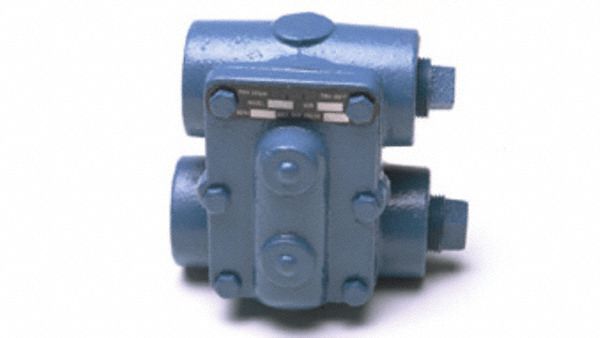

Nicholson 3G-OTH-71371 — Technical Specifications
The NICHOLSON FTN-C2D9A is a Cast Iron H-Pattern Float & Thermostatic Steam Trap from the FTN series. It features a 3/4 in FNPT connection, a maximum capacity of 1,370 lb/hr, and a maximum operating pressure of 30 psi with a maximum temperature of 450°F. The float material is cast iron, and it is designed for horizontal installation.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 3/4 in |
| Max. | 30 psi |
| Type | 1,370 lb/hr, H Pattern |
| Brand | NICHOLSON |
| Float Material | Cast Iron |
| Manufacturer Series | FTN |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FTN-C2D9A |
