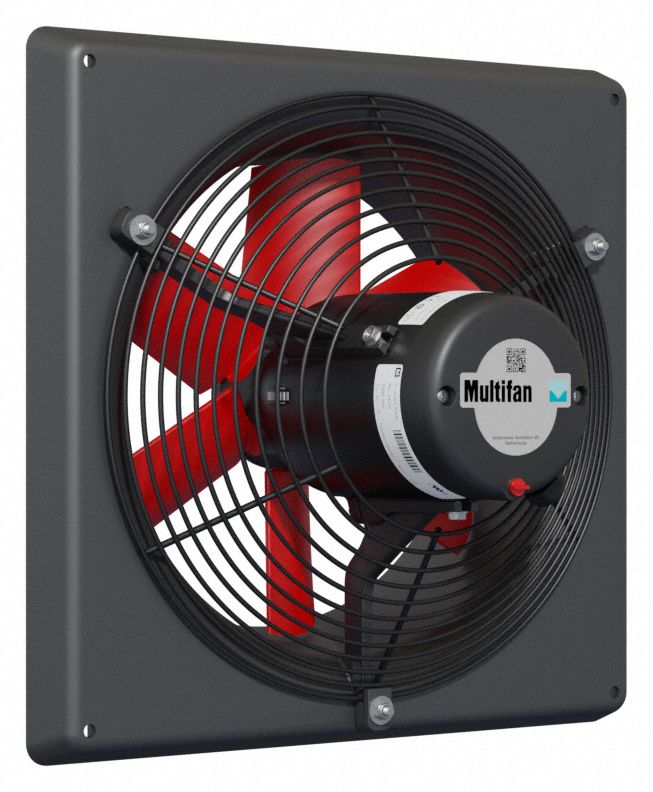

Multifan 3G-OTH-80091 — Technical Specifications
The MULTIFAN V2E30KBM71100 is a corrosion-resistant direct-drive panel exhaust fan with a 12-inch blade, 1/4 hp, and 2,210 cfm at 240V AC, 1 ph. It features a fiberglass frame, cast construction, a permanent split capacitor motor with Class F insulation, and a totally enclosed air-over enclosure. The fan includes intake guards and is assembled, with variable speed capability.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | MULTIFAN |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | Permanent Split Capacitor |
| Frame Material | Fiberglass |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class F |
| Number Of Speeds | Variable |
| Nameplate Voltage | 240V AC |
| Guard Type Subheads | With Intake Guards |
| Method Of Construction | Cast |
| Manufacturer Part Number | V2E30KBM71100 |
