Johnson Controls 3G-OTH-448612 — Technical Specifications

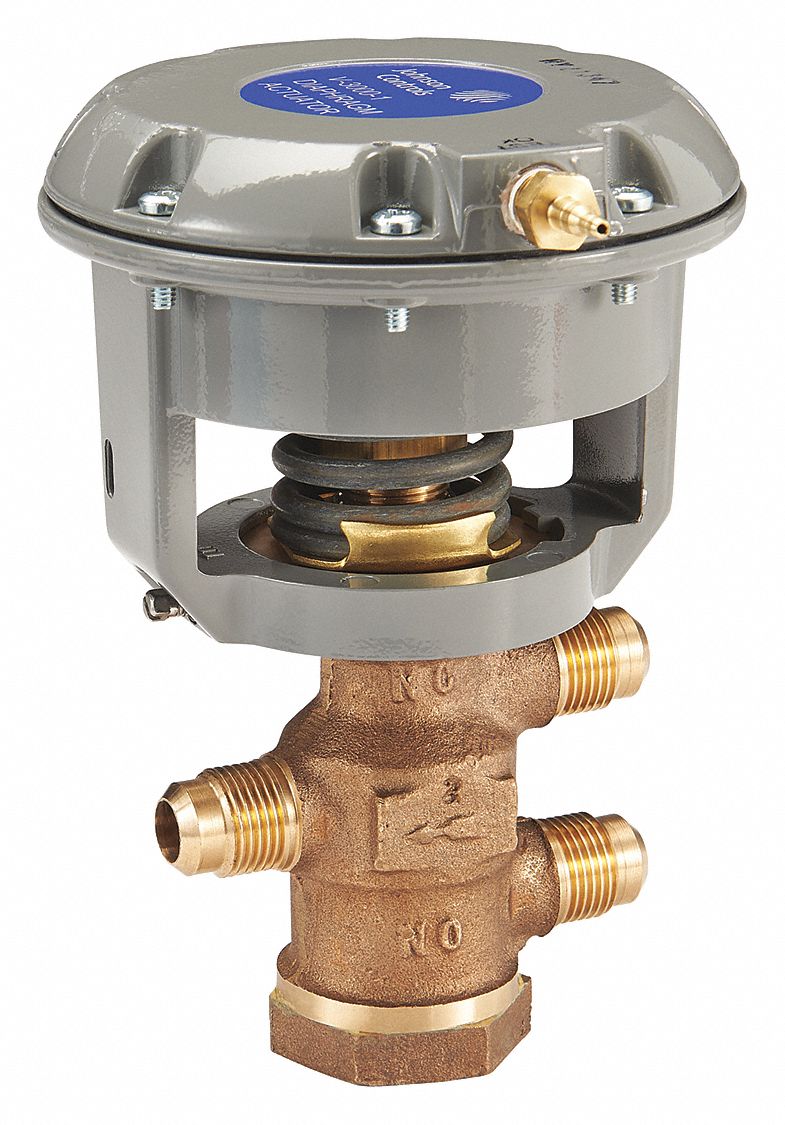

The JOHNSON CONTROLS Pneumatically Actuated Diaphragm Valve (SKU 20XJ20, MPN V-4332-1004) is a 1/2 in, brass, 3-way metal diaphragm valve with flare x flare connections. Designed for water media, it features a single-acting spring return actuator with air-to-spring operation and a reinforced synthetic rubber diaphragm.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Brass, 3-Way, Flare x Flare |
| Brand | JOHNSON CONTROLS |
| For Media | Water |
| Actuator Type | Single-Acting Spring Return |
| Connection Type | Flare x Flare |
| Actuator Operation | Air to Spring |
| Diaphragm Material | Reinforced Synthetic Rubber |
| Diaphragm Valve Type | 3-Way |
| Connection Type-Side 1 | Flare |
| Connection Type - Side 2 | Flare |
| Manufacturer Part Number | V-4332-1004 |
