Gates 3G-OTH-108543 — Technical Specifications

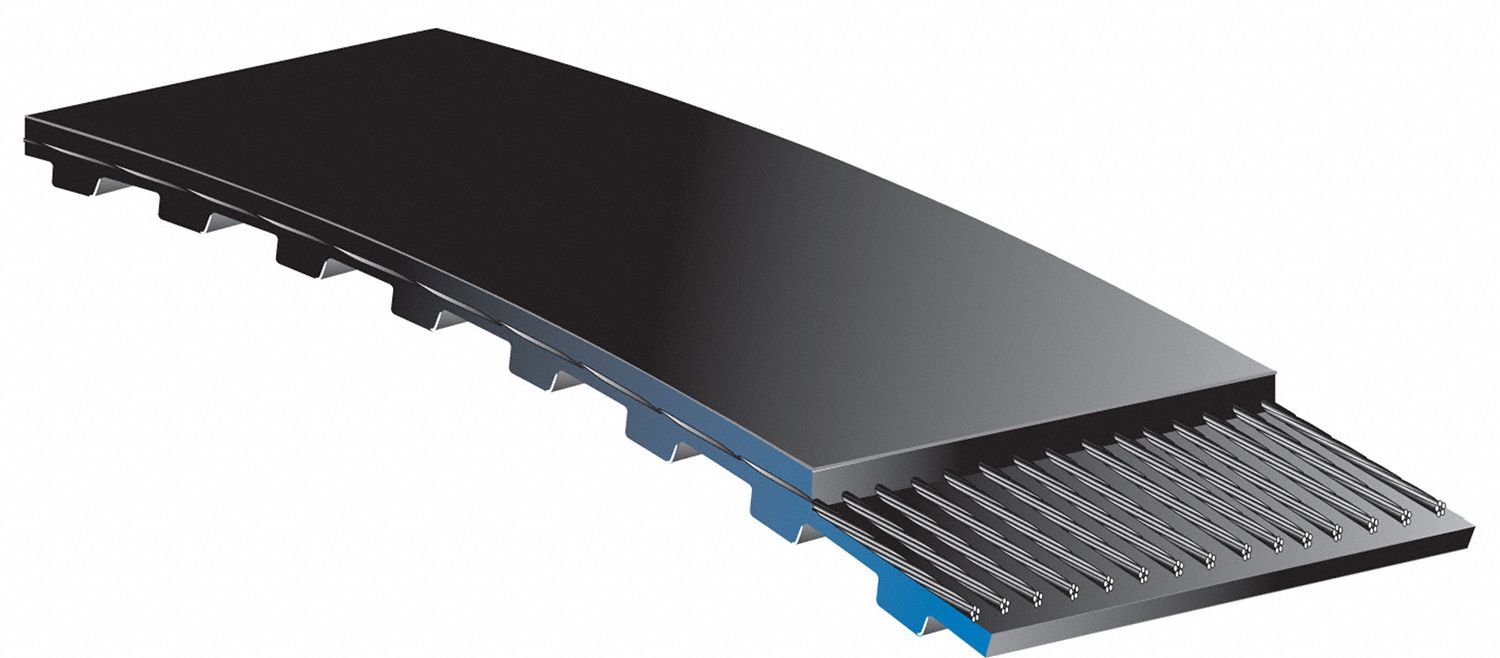

The GATES Timing Belt: One Side is a closed-loop MXL Section trapezoidal timing belt from the PowerGrip® series. It features a 0.08 in pitch, 3/16 in top width, 65 teeth, and is made of neoprene. The belt is identified by manufacturer part number 52MXL019 and industry number 52MXL019.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PowerGrip®, 52MXL019, Neoprene |
| Brand | GATES |
| Pitch | 0.08 in |
| Teeth | 65 |
| Top Wd | 3/16 in |
| Belt Series | PowerGrip® |
| Length Type | Closed Loop |
| Tooth Profile | Trapezoidal |
| Industry Number | 52MXL019 |
| Manufacturer Part Number | 52MXL019 |
