Dayton 3G-OTH-41718 — Technical Specifications

Name: Dayton 3G-OTH-41718 DAYTON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, 28 A – 36 A (MPN 6ECC8). Key specifications — Brand: DAYTON; Auxiliary Contact Form: 1NO/1NC; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: Dayton (25 to 32 Amps Models).
Brand: Dayton

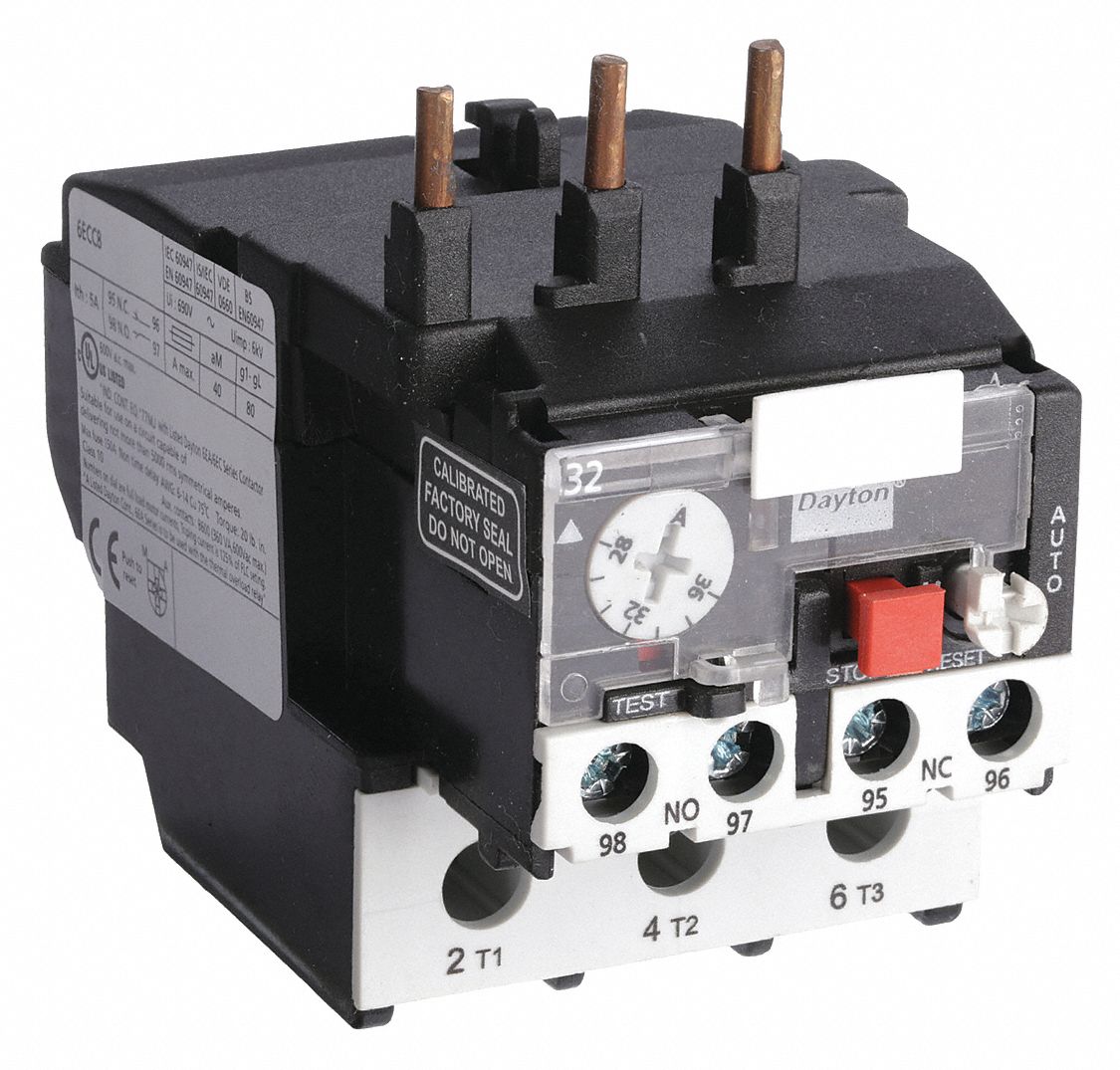

The DAYTON Overload Relay (MPN 6ECC8) is a 3-pole IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts and phase loss sensitivity, and is compatible with Dayton contactors rated 25 to 32 Amps. The relay provides thermal protection for motors in the 28 A to 36 A range.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1NO/1NC, Phase Loss Sensitivity, 28 A – 36 A
Brand	DAYTON
Poles	3
Compatible Contactors	Dayton (25 to 32 Amps Models)
Auxiliary Contact Form	1NO/1NC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	6ECC8
