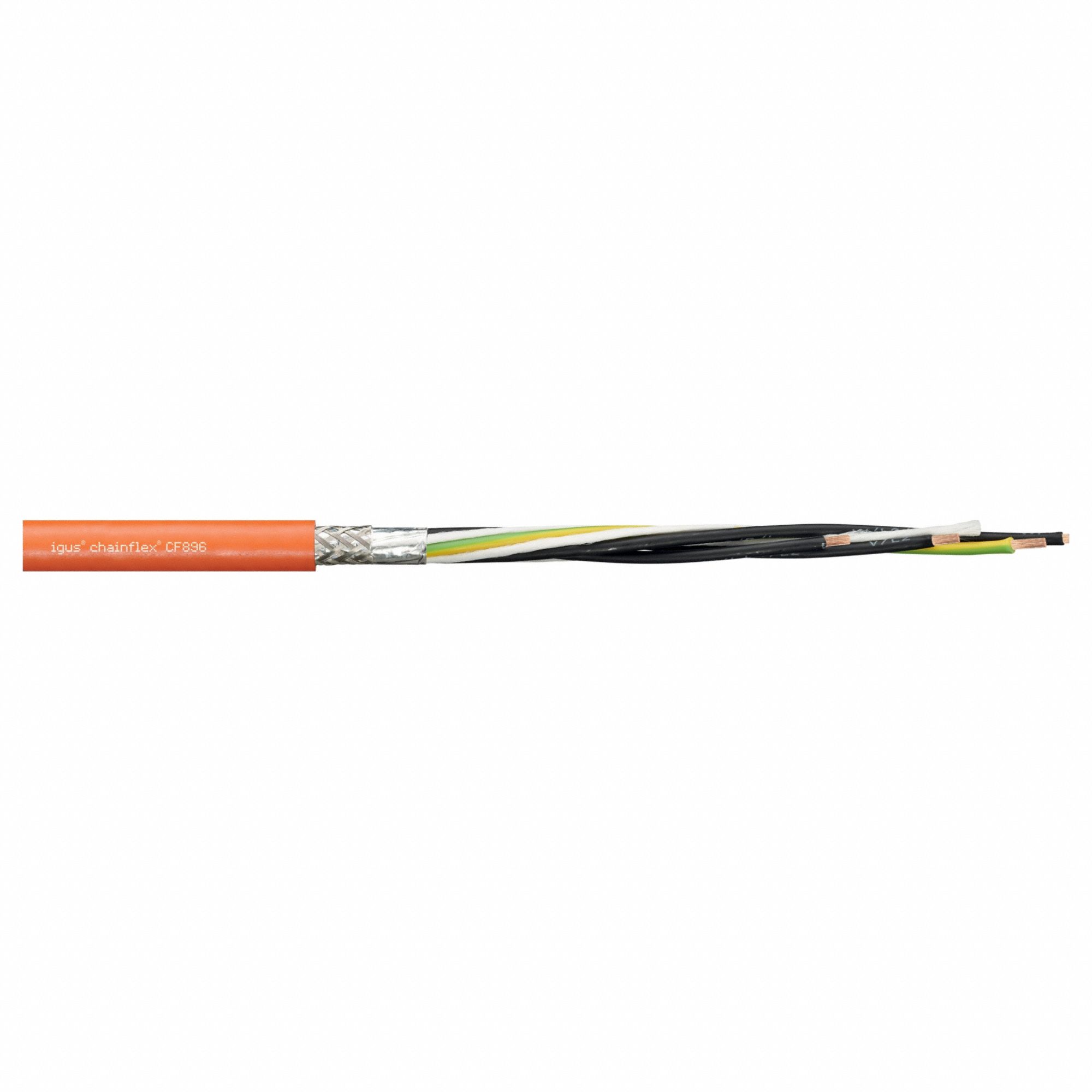

Chainflex 3G-OTH-47316 — Technical Specifications

Name: Chainflex 3G-OTH-47316 CHAINFLEX Motor Cable: 18 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF896-07-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CTP C-DE. PB49.B.00450.
Brand: Chainflex

The CHAINFLEX Motor Cable: 18 AWG (SKU 801M85) is a continuous flexing power cable from the Chainflex series, model CF896-07-04, featuring 4 copper conductors with a single conductor configuration and an integrated ground. It is rated at 1,000 V, has a PUR jacket, and is UV/sunlight resistant. The cable offers minimum bend radius factors of 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications, complying with standards CTP C-DE. PB49.B.00450.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CTP C-DE. PB49.B.00450
Cable Series	CF896
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF896-07-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
