Chainflex 3G-OTH-45690 — Technical Specifications

Name: Chainflex 3G-OTH-45690 CHAINFLEX Motor Cable: 6 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF886-160-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Flame Retardant; Standards: IEC 60332-1-2.
Brand: Chainflex

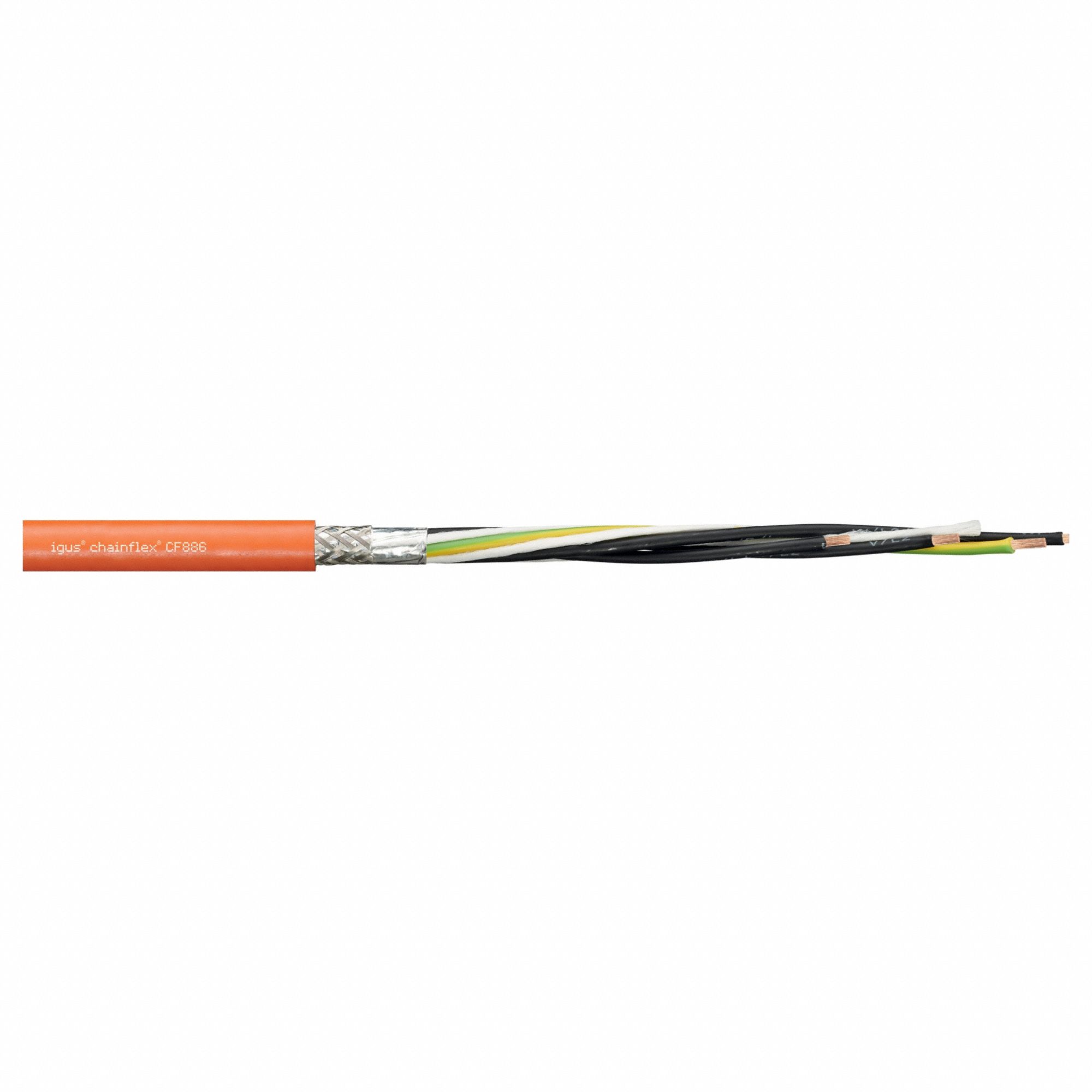

The CHAINFLEX Motor Cable: 6 AWG (SKU 801M52, MPN CF886-160-04) is a continuous flexing power cable for VFDs from the Chainflex series. It features 4 copper conductors with a single conductor configuration, includes a ground, and has a PVC jacket rated for 1,000 V. The cable is flame retardant per IEC 60332-1-2, with minimum bend radius factors of 8 x OD for fixed, 12 x OD for flexible, and 15 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Conductors	4
Cable Series	CF886
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF886-160-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
