Chainflex 3G-OTH-45947 — Technical Specifications

Name: Chainflex 3G-OTH-45947 CHAINFLEX Motor Cable: 2/0 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF31-700-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: FT-1.
Brand: Chainflex

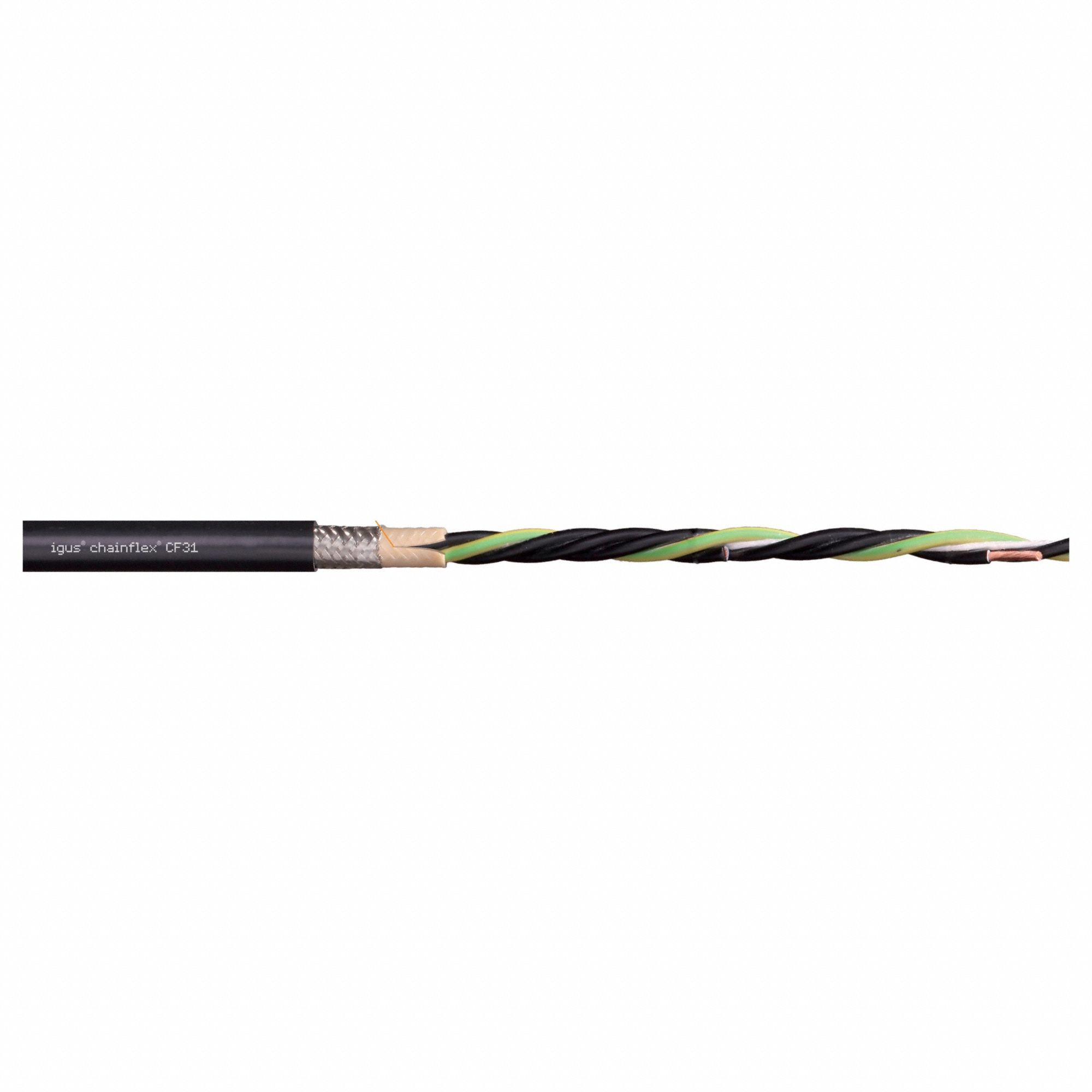

The CHAINFLEX Motor Cable: 2/0 AWG (SKU 801M06, MPN CF31-700-04) is a continuous flexing power cable for VFDs from the Chainflex CF31 series. It features 4 copper conductors with a single conductor configuration, includes a ground, and is rated at 1,000 V with a PVC jacket. The cable is oil and grease resistant, meets FT-1 standards, and has minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-700-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
