Chainflex 3G-OTH-51863 — Technical Specifications

Name: Chainflex 3G-OTH-51863 CHAINFLEX Control Cable: 24 AWG, 18 Conductors, Order by the Foot, PUR Jacket, 300 V (MPN CF77-UL-02-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: EAC TC RU C-DE. ME77.B.01254.
Brand: Chainflex

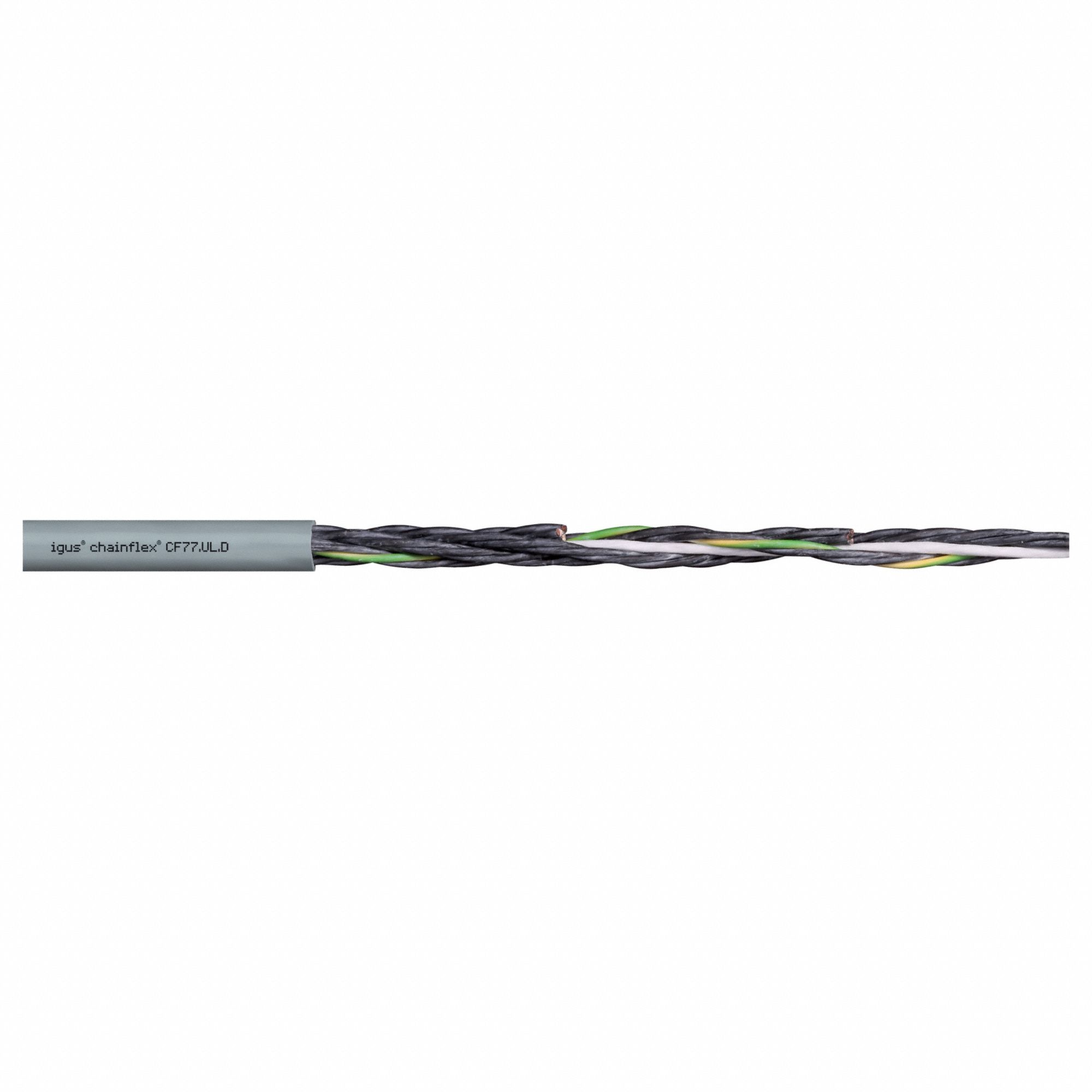

The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the Chainflex series, model CF77-UL-02-18, featuring 18 conductors of single copper wire with a PUR jacket rated at 300 V. It is oil and grease resistant, with minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications, and complies with EAC TC RU C-DE. ME77.B.01254 standards.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	EAC TC RU C-DE. ME77.B.01254
Conductors	18
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-02-18
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
