Chainflex 3G-OTH-45916 — Technical Specifications

Name: Chainflex 3G-OTH-45916 CHAINFLEX Motor Cable: 3/0 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF310-950-01-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: CE.
Brand: Chainflex

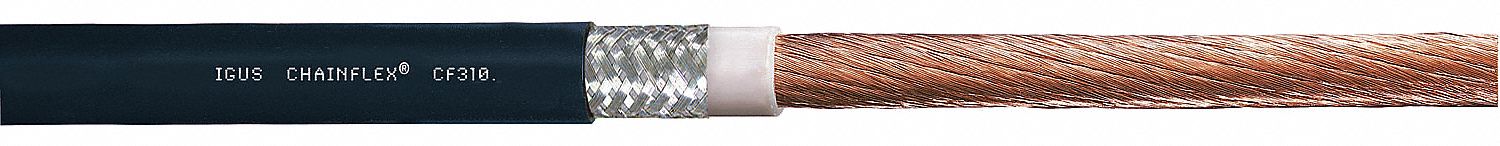

The CHAINFLEX Motor Cable: 3/0 AWG (SKU 24C161, MPN CF310-950-01-1) is a continuous flexing power cable for VFDs from the Chainflex CF310-UL series. This single-conductor copper cable features a TPR jacket, includes a ground, and is rated at 1,000 V. It offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications, with flame-retardant properties and CE standards compliance.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF310-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF310-950-01-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
