Advance 3G-OTH-386182 — Technical Specifications

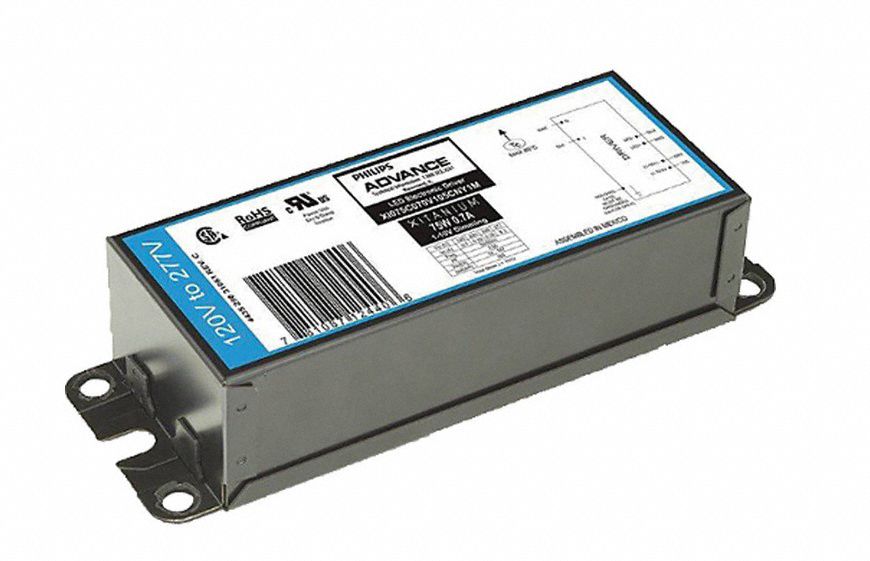

Name: Advance 3G-OTH-386182 ADVANCE LED Driver: Class 2, 75 W Max. Power Output, 120 to 277V AC, 43 to 107V DC, 700 mA, 0-10V (MPN XI075C070V105CNY2M). Key specifications — Brand: ADVANCE; Output Voltage: 43 to 107V DC; Dimming Method: 0-10V; Output Current: 700 mA.
Brand: Advance

The ADVANCE LED Driver: Class 2 is a fixed output constant current driver with a 700 mA output current and an output voltage range of 43 to 107V DC. It supports 0-10V dimming and has a maximum power output of 75 W, operating on 120 to 277V AC input (MPN XI075C070V105CNY2M).

View Product & Quote

Technical Specifications

Parameter	Value
AC	120 to 277V
DC	43 to 107V
Type	700 mA, 0-10V
Brand	ADVANCE
Dimming Method	0-10V
Output Current	700 mA
Output Voltage	43 to 107V DC
Max. Power Output	75 W
Manufacturer Part Number	XI075C070V105CNY2M
