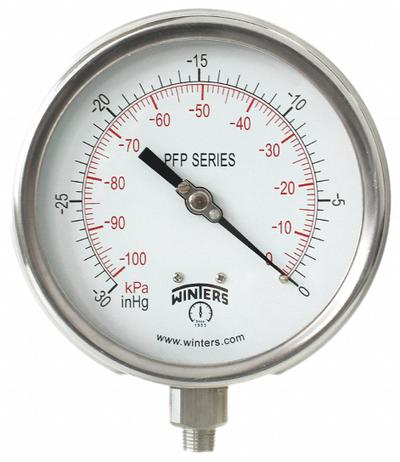

WINTERS Panel-Mount Vacuum Gauge: Back Flange, 4 1/2 in Dial, 1/4 in NPT Male, Bottom - Back-Flange Panel-Mount with Stainless Steel Wetted Parts
WINTERSBack-Flange Panel-Mount with Stainless Steel Wetted Parts

WINTERS Panel-Mount Vacuum Gauge: Back Flange, 4 1/2 in Dial, 1/4 in NPT Male, Bottom

The WINTERS Panel-Mount Vacuum Gauge (Back Flange) is a back-flange panel-mount gauge with stainless steel wetted parts, featuring a 4 1/2 in dial and a 1/4 in NPT male bottom connection. It offers ±1.0% accuracy and…

SKU 3G-OTH-174861

Brand
WINTERS
Item
Panel-Mount Vacuum Gauge: Back Flange, 4 1/2 in Dial, 1/4 in NPT Male, Bottom
Category
Back-Flange Panel-Mount with Stainless Steel Wetted Parts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

WINTERS
Manufacturer Part Number
PFP700-DRY-45BF
Type
Bottom, PFP, PFP, 4X
Dial
4 1/2 in
Accuracy
±1.0%
NPT Male
1/4 in
Gauge Wetted Parts
Stainless Steel
Vibration Resistance Properties
Field-Fillable
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

WINTERS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WINTERS Panel-Mount Vacuum Gauge (Back Flange) is a back-flange panel-mount gauge with stainless steel wetted parts, featuring a 4 1/2 in dial and a 1/4 in NPT male bottom connection. It offers ±1.0% accuracy and is field-fillable for vibration resistance. This model, MPN PFP700-DRY-45BF, is designed for panel-mount applications requiring a durable vacuum gauge.

Used in

Common applications for WINTERS
Process control — WINTERS PPC series process pressure gauges for monitoring hydraulic and pneumatic systems in manufacturing plants.
HVAC systems — WINTERS PFD series differential pressure gauges for measuring filter pressure drop in air handling units.
Panel mounting — WINTERS PFP series back-flange panel-mount gauges for control panels in industrial automation.
Temperature measurement — WINTERS TBR series threaded thermowells for protecting temperature sensors in pipelines.
Water treatment — WINTERS differential pressure gauges for monitoring pressure across filtration membranes.
Oil and gas — WINTERS all-stainless steel pressure gauges for corrosive media in upstream and downstream processes.
