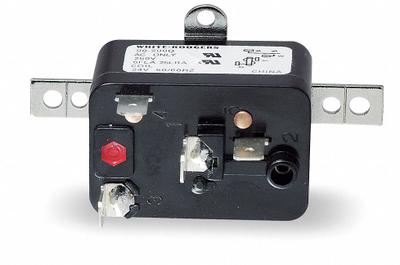

WHITE-RODGERS Magnetic Relay: Surface Mounted, 125 mA Current Rating, 24V AC, SPDT - Surface-Mounted Relays
WHITE-RODGERSSurface-Mounted Relays

WHITE-RODGERS Magnetic Relay: Surface Mounted, 125 mA Current Rating, 24V AC, SPDT

The WHITE-RODGERS Magnetic Relay is a surface-mounted relay with a universal mounting style and quick-connect electrical connection. It features an SPDT configuration with 5 pins/terminals, a 125 mA current rating at…

SKU 3G-OTH-36342

Brand
WHITE-RODGERS
Item
Magnetic Relay: Surface Mounted, 125 mA Current Rating, 24V AC, SPDT
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

WHITE-RODGERS
Manufacturer Part Number
90 293Q
Type
125 mA Current Rating, SPDT
AC
24V
Mounting Style
Universal
Pins/Terminals
5
Operating Current
8 A at 125/250V AC (Inductive Load)
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

WHITE-RODGERS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WHITE-RODGERS Magnetic Relay is a surface-mounted relay with a universal mounting style and quick-connect electrical connection. It features an SPDT configuration with 5 pins/terminals, a 125 mA current rating at 24V AC, and an operating current of 8 A at 125/250V AC (inductive load). This relay is identified by manufacturer part number 90 293Q.
