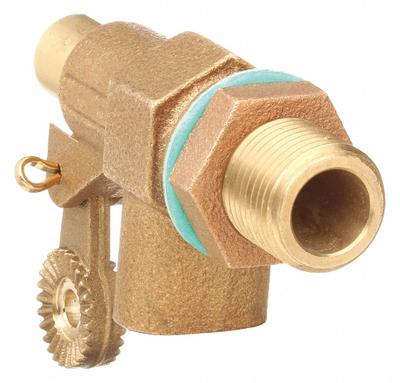

Watts Float Valve: For Water Media, Straight Valve Body, Bulkhead, Bronze, 1/2 in Pipe Size - General Service Float Valve Bodies
WattsGeneral Service Float Valve Bodies

Watts Float Valve: For Water Media, Straight Valve Body, Bulkhead, Bronze, 1/2 in Pipe Size

The WATTS HD-500-12 is a general service float valve body for water media, featuring a straight valve body style and bulkhead mounting. It has a flow rate of 20 gpm @ 50 psi, a 1/4"-20 rod thread, and adjustable arm…

SKU 3G-OTH-438728

Brand
Watts
Item
Float Valve: For Water Media, Straight Valve Body, Bulkhead, Bronze, 1/2 in Pipe Size
Category
General Service Float Valve Bodies
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Watts
Manufacturer Part Number
HD-500-12
Type
Straight Valve Body, Bulkhead, Bronze, Flange
Pipe Size
1/2 in
Mounting
Bulkhead
Flow Rate
20 gpm @ 50 psi
For Media
Water
Rod Thread
1/4"-20
Valve Series
750
Valve Body Style
Straight
Arm Adjustability
Adjustable
Inlet Connection Type
Flange
Outlet Connection Type
Flange
Connection Type - Side 1
Flange
Connection Type - Side 2
Flange
Connection Gender - Side 1
Male
Connection Gender - Side 2
Male
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Watts Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WATTS HD-500-12 is a general service float valve body for water media, featuring a straight valve body style and bulkhead mounting. It has a flow rate of 20 gpm @ 50 psi, a 1/4"-20 rod thread, and adjustable arm. The valve body is bronze with male flange connections on both sides, part of the Series 750.
