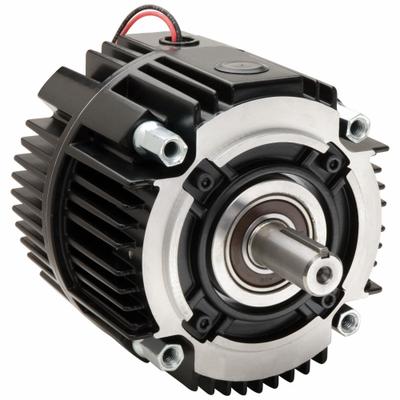

WARNER ELECTRIC Clutch/Brake: 24V DC, 24V DC, 24V DC, Vented, 30 ft-lb Static Torque - Combined Clutch & Brake Units
WARNER ELECTRICCombined Clutch & Brake Units

WARNER ELECTRIC Clutch/Brake: 24V DC, 24V DC, 24V DC, Vented, 30 ft-lb Static Torque

The WARNER ELECTRIC Combined Clutch & Brake Unit (SKU 2DBL2, MPN UM180-1020-24) is a 24V DC, vented unit designed for use with a NEMA C-Face motor/reducer. It mounts on a NEMA C-Face motor or between the motor and…

SKU 3G-OTH-109301

Brand
WARNER ELECTRIC
Item
Clutch/Brake: 24V DC, 24V DC, 24V DC, Vented, 30 ft-lb Static Torque
Category
Combined Clutch & Brake Units
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

WARNER ELECTRIC
Manufacturer Part Number
UM180-1020-24
Type
Vented, 30 ft-lb Static Torque
DC
24V
NEMA
182C
Includes
Mounting Hardware
For Use With
NEMA C-Face Motor/Reducer
Enclosure Type
Vented
Horsepower @ RPM
30 hp @ 3450 RPM
Mounting Location
NEMA C-Face Motor or Between Motor and Reducer
Motor Frame Designation
182C NEMA
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

WARNER ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WARNER ELECTRIC Combined Clutch & Brake Unit (SKU 2DBL2, MPN UM180-1020-24) is a 24V DC, vented unit designed for use with a NEMA C-Face motor/reducer. It mounts on a NEMA C-Face motor or between the motor and reducer, and is rated for 30 hp @ 3450 RPM with a 182C NEMA motor frame designation. The unit includes mounting hardware and provides 30 ft-lb static torque.

Used in

Common applications for WARNER ELECTRIC
Material handling conveyors — Warner Electric UM series motor-mounted clutches for start-stop control
Packaging machinery — Warner Electric EP-500 combined clutch/brake unit for indexing and tension control
Machine tool spindles — Warner Electric C-face clutches (UM100-1040) for engagement with NEMA C-face motors
Automated assembly lines — Warner Electric CBC-150 controls for precise 90V DC clutch/brake actuation
Printing presses — Warner Electric mounting kits (5370-101-078) for retrofitting UM-50/UM-100 brakes
Textile equipment — Warner Electric cover kits (5370-101-076) for protecting UM-100 brake conduit boxes

WARNER ELECTRIC Products

3G Electric supplies WARNER ELECTRIC combined clutch & brake units. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
