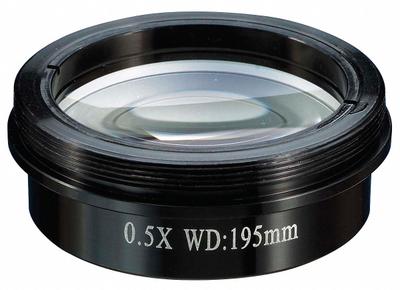

UNITRON Reducing Lens: 0.5X, 65.7 mm Optical Field of View, 7.7 in - Microscope Lenses
UNITRONMicroscope Lenses

UNITRON Reducing Lens: 0.5X, 65.7 mm Optical Field of View, 7.7 in

The UNITRON Reducing Lens: 0.5X is an objective lens with 0.5X optical magnification and a 7.7 in working distance. It is compatible with EliteHD Microscopes, specifically model MHD001. This lens provides a 65.7 mm…

SKU 3G-OTH-363757

Brand
UNITRON
Item
Reducing Lens: 0.5X, 65.7 mm Optical Field of View, 7.7 in
Category
Microscope Lenses
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

UNITRON
Manufacturer Part Number
23750
Type
7.7 in, MEH-001/MHD001
Product Type
Objective Lens
Working Distance
7.7 in
Optical Field Of View
65.7 mm
Optical Magnification
0.5X
Compatible with Product Type
EliteHD Microscopes
Compatible with Manufacturer Model Number
MHD001
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

UNITRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The UNITRON Reducing Lens: 0.5X is an objective lens with 0.5X optical magnification and a 7.7 in working distance. It is compatible with EliteHD Microscopes, specifically model MHD001. This lens provides a 65.7 mm optical field of view for use with compatible microscopes.

Used in

Common applications for UNITRON
Electronics assembly inspection — UNITRON stereo microscope 7X to 45X (MPN 23728RB) for solder joint and component verification
Quality control in manufacturing — UNITRON stereo microscope 0.8X to 5X (MPN 13108) for surface defect detection on large parts
Laboratory material analysis — UNITRON stereo microscope 6.5X to 45X (MPN 18712) with single arm boom for sample positioning
Industrial inspection station — UNITRON universal boom stand (MPN 15636A) supporting microscope over conveyor line
Precision assembly tasks — UNITRON dimmable LED ring light (MPN 18746) providing shadow-free illumination on workpieces
Flexible arm mounting — UNITRON flask clamp table mount (MPN 15350-TM) for securing microscopes in tight workspaces
