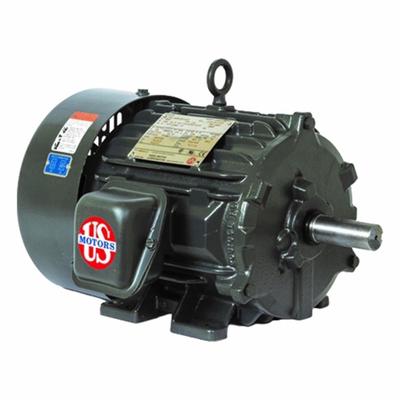

U.S. MOTORS General Purpose Motor: Flange Mount, Totally Enclosed Fan Cooled, 20 hp - Rigid Base 3-Phase General Purpose AC Motors
U.S. MOTORSRigid Base 3-Phase General Purpose AC Motors

U.S. MOTORS General Purpose Motor: Flange Mount, Totally Enclosed Fan Cooled, 20 hp

The U.S. MOTORS Rigid Base 3-Phase General Purpose AC Motor (SKU 357KG5, MPN HD20P3E) is a 20 hp, TEFC-enclosed motor with a nameplate speed of 1,180 RPM at 60 Hz. It operates at 208V AC and draws a full load current…

SKU 3G-OTH-71719

Brand
U.S. MOTORS
Item
General Purpose Motor: Flange Mount, Totally Enclosed Fan Cooled, 20 hp
Category
Rigid Base 3-Phase General Purpose AC Motors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

U.S. MOTORS
Manufacturer Part Number
HD20P3E
Type
Totally Enclosed Fan Cooled, 20 hp, 1,180 RPM
Motor Enclosure
TEFC
Nameplate RPM @ 60 Hz
1,180 RPM
Full Load Current @ 60 Hz
49.0/24.4 A
Nameplate Voltage @ 60 Hz
208V AC
MOTORS General Purpose Motor
Flange Mount
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

U.S. MOTORS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The U.S. MOTORS Rigid Base 3-Phase General Purpose AC Motor (SKU 357KG5, MPN HD20P3E) is a 20 hp, TEFC-enclosed motor with a nameplate speed of 1,180 RPM at 60 Hz. It operates at 208V AC and draws a full load current of 49.0/24.4 A at 60 Hz.

Used in

Common applications for U.S. MOTORS
Pumping systems — U.S. MOTORS A40P1CS (40 hp, 460 V, 3,570 RPM) for centrifugal water pumps in industrial facilities.
HVAC fans — U.S. MOTORS A7P4C (7.5 hp, 460 V, 885 RPM) for large air-handling unit fan drives.
Conveyor drives — U.S. MOTORS A25P1CS (25 hp, 460 V, 3,565 RPM) for material-handling belt conveyors.
Compressor applications — U.S. MOTORS A30P3C (30 hp, 460 V, 1,190 RPM) for rotary screw air compressors.
Machine tool spindles — U.S. MOTORS HD3P1H (3 hp, 200 V, 3,535 RPM) for high-speed milling machine spindles.
Elevator traction — U.S. MOTORS elevator motors (specialized line) for hydraulic or traction elevator systems.

U.S. MOTORS Products

3G Electric supplies U.S. MOTORS rigid base 3-phase general purpose ac motors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
