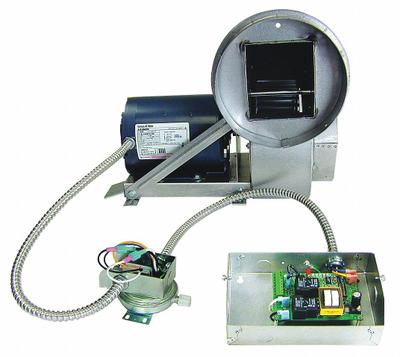

TJERNLUND Induced Draft Blower: For Boilers/Water Heaters, For 10 in to 14 in Pipe - Pipe-Mount Exhaust Draft Inducers
TJERNLUNDPipe-Mount Exhaust Draft Inducers

TJERNLUND Induced Draft Blower: For Boilers/Water Heaters, For 10 in to 14 in Pipe

The TJERNLUND HS5 is a pipe-mount exhaust draft inducer designed for boilers and water heaters. It operates on 115V AC with a current draw of 12.6 A and is configured for LP fuel. The unit includes a fan proving…

SKU 3G-OTH-75196

Brand
TJERNLUND
Item
Induced Draft Blower: For Boilers/Water Heaters, For 10 in to 14 in Pipe
Category
Pipe-Mount Exhaust Draft Inducers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TJERNLUND
Manufacturer Part Number
HS5
Type
For 10 in to 14 in Pipe
AC
115V
Current
12.6 A
Includes
Fan Proving Switch
Application
Boilers
For Fuel Type
LP
Nominal Voltage
115V AC
Nameplate Voltage
115V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TJERNLUND Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TJERNLUND HS5 is a pipe-mount exhaust draft inducer designed for boilers and water heaters. It operates on 115V AC with a current draw of 12.6 A and is configured for LP fuel. The unit includes a fan proving switch and is intended for 10 in to 14 in pipe applications.
