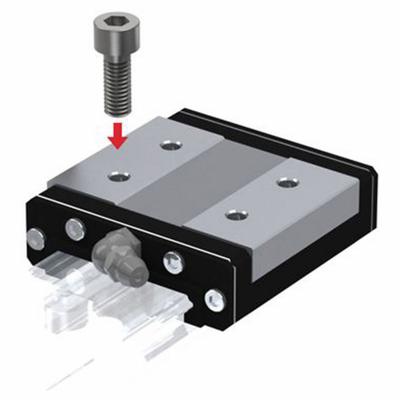

THK Linear Guide Carriage: For 90 mm Rail Wd, Ball, HRW Wide Rail Guide - THK HRW Series Ball Carriages
THKTHK HRW Series Ball Carriages

THK Linear Guide Carriage: For 90 mm Rail Wd, Ball, HRW Wide Rail Guide

The THK HRW Series Ball Carriage (MPN HRW50CR1SS) is a linear guide carriage designed for a 90 mm rail width. This HRW Wide Rail Guide features a Size 50, with a carriage height of 46.6 mm, and is constructed from…

SKU 3G-OTH-119713

Brand
THK
Item
Linear Guide Carriage: For 90 mm Rail Wd, Ball, HRW Wide Rail Guide
Category
THK HRW Series Ball Carriages
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

THK
Manufacturer Part Number
HRW50CR1SS
Type
HRW Wide Rail Guide
Size
50
Features
End Seal and Side Seal
Carriage Ht
46.6 mm
Roller Material
Carbon Steel
Carriage Material
Carbon Steel
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

THK Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The THK HRW Series Ball Carriage (MPN HRW50CR1SS) is a linear guide carriage designed for a 90 mm rail width. This HRW Wide Rail Guide features a Size 50, with a carriage height of 46.6 mm, and is constructed from carbon steel for both the carriage and roller materials. It includes End Seal and Side Seal features.

Used in

Common applications for THK
CNC machine tools — THK SHS series ball carriages and profile rails for precise linear motion in milling and turning centers
Semiconductor wafer handling — THK SSR series radial guides for compact, low-profile stages in cleanroom environments
Automated assembly lines — THK HSR series heavy-load guides for high-rigidity positioning in pick-and-place systems
Material handling equipment — THK SHS series guides for linear axes in conveyor and sorting systems
Medical imaging devices — THK SSR series carriages for smooth, low-friction movement in diagnostic scanners
Packaging machinery — THK SHS series profile rails for high-speed linear motion in cartoners and wrappers
