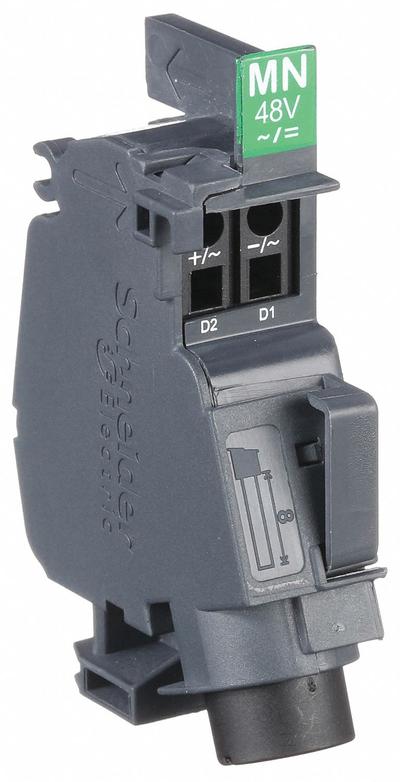

SQUARE D Undervoltage Release: Undervoltage Release, PowerPact(R) B Circuit Breakers - Square D Circuit Breaker Undervoltage Release
SQUARE DSquare D Circuit Breaker Undervoltage Release

SQUARE D Undervoltage Release: Undervoltage Release, PowerPact(R) B Circuit Breakers

The SQUARE D Undervoltage Release (MPN LV426802) is a circuit breaker accessory designed for use with PowerPact(R) B Circuit Breakers. It operates at 48V AC/DC and has no poles. This undervoltage release provides a…

SKU 3G-OTH-19452

Brand
SQUARE D
Item
Undervoltage Release: Undervoltage Release, PowerPact
Category
Square D Circuit Breaker Undervoltage Release
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
LV426802
Type
PowerPact(R) B Circuit Breakers
AC/DC
48V
Voltage
48V AC/DC
For Use With
PowerPact(R) B Circuit Breakers
Accessory Type
Undervoltage Release
Number of Poles
None
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D Undervoltage Release (MPN LV426802) is a circuit breaker accessory designed for use with PowerPact(R) B Circuit Breakers. It operates at 48V AC/DC and has no poles. This undervoltage release provides a means to trip the breaker when voltage drops below a specified level.
