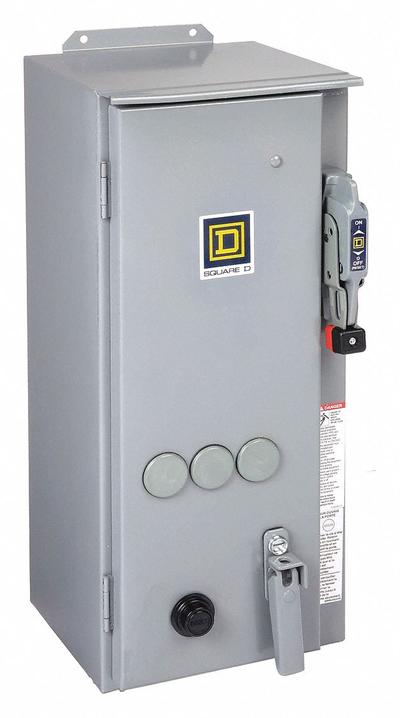

SQUARE D NEMA Combination Starter: Circuit Breaker, 3 Poles, NEMA Size 0 - Circuit Breaker Starters with Thermal Overloads
SQUARE DCircuit Breaker Starters with Thermal Overloads

SQUARE D NEMA Combination Starter: Circuit Breaker, 3 Poles, NEMA Size 0

The SQUARE D NEMA Combination Starter: Circuit Breaker (SKU 1H694, MPN 8539SBA53V02S) is a three-phase, 3-pole circuit breaker starter with thermal overloads from the Series 8539. It is NEMA Size 0, NEMA-Rated 12…

SKU 3G-OTH-44306

Brand
SQUARE D
Item
NEMA Combination Starter: Circuit Breaker, 3 Poles, NEMA Size 0
Category
Circuit Breaker Starters with Thermal Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
8539SBA53V02S
Series
8539
Type
NEMA Size 0, NEMA-Rated 12
AC
120V
Phase
Three
Poles
3
Poles/Phase
3 Pole / Three Phase
Coil Voltage
120V AC
Operator Type
No Operator
Control Transformer
No
Includes Pilot Light
No
Maximum Voltage Rating
600V AC
Thermal Units Required
3 Melting Alloy Units (Not Included)
Includes Auxiliary Contacts
No
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D NEMA Combination Starter: Circuit Breaker (SKU 1H694, MPN 8539SBA53V02S) is a three-phase, 3-pole circuit breaker starter with thermal overloads from the Series 8539. It is NEMA Size 0, NEMA-Rated 12, with a maximum voltage rating of 600V AC and a coil voltage of 120V AC. This unit requires 3 melting alloy thermal units (not included) and does not include a control transformer, pilot light, operator, or auxiliary contacts.
