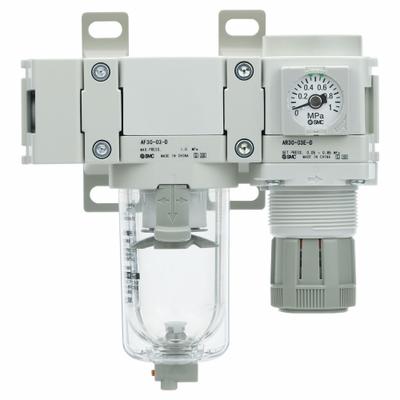

SMC Filter Regulator: AC-D Series, 1/4 in NPT, 5 micron, 0.85 MPa Max Op Pressure - SMC FRL Air Filter/Regulators
SMCSMC FRL Air Filter/Regulators

SMC Filter Regulator: AC-D Series, 1/4 in NPT, 5 micron, 0.85 MPa Max Op Pressure

The SMC AC-D Series Filter Regulator (MPN AC30B-N02-Z-D) is a die-cast aluminum FRL air filter/regulator with a 1/4 in NPT port size, 5 micron filtration, and a maximum operating pressure of 0.85 MPa. It features a…

SKU 3G-OTH-136328

Brand
SMC
Item
Filter Regulator: AC-D Series, 1/4 in NPT, 5 micron, 0.85 MPa Max Op Pressure
Category
SMC FRL Air Filter/Regulators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SMC
Manufacturer Part Number
AC30B-N02-Z-D
Type
5 micron, Manual Drain
NPT
1/4 in
MPa Max Op Pressure
0.85
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SMC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SMC AC-D Series Filter Regulator (MPN AC30B-N02-Z-D) is a die-cast aluminum FRL air filter/regulator with a 1/4 in NPT port size, 5 micron filtration, and a maximum operating pressure of 0.85 MPa. It features a manual drain and is designed for industrial compressed air systems.

Used in

Common applications for SMC
Automotive assembly — SMC ZP3 flat vacuum pads for handling small components in pick-and-place robots
Semiconductor manufacturing — SMC ZM series vacuum generators with needle valves for precise wafer handling
Food packaging — SMC AW-D series filter regulators for clean compressed air in pneumatic actuators
General industrial automation — SMC AS2211F speed control valves for regulating cylinder speeds in conveyor systems
Vacuum conveying — SMC ZH series box-type vacuum generators for material transport in packaging lines
Machine tool coolant systems — SMC ZF series in-line filters to protect vacuum ejectors from debris

SMC Products

3G Electric supplies SMC smc frl air filter/regulators. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
