SMC Rotary Table: 190° Rotation Angle, 9.28 N-m Output Torque, 2 in Bore Dia - Rotary Table Actuators
SMCRotary Table Actuators

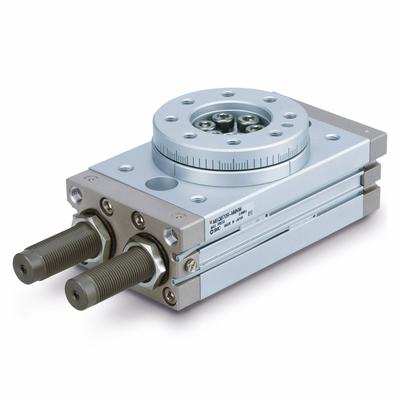

SMC Rotary Table: 190° Rotation Angle, 9.28 N-m Output Torque, 2 in Bore Dia

The SMC MSQB50R-XN is a rotary table actuator with a 190° rotation angle and 9.28 N-m output torque. It features a 2 in bore diameter, 1/8 in NPT port size, and an inch measurement system. This base model unit…

SKU 3G-OTH-145110

Brand
SMC
Item
Rotary Table: 190° Rotation Angle, 9.28 N-m Output Torque, 2 in Bore Dia
Category
Rotary Table Actuators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SMC
Manufacturer Part Number
MSQB50R-XN
Type
Inch, End
NPT
1/8 in
Bore Dia
2 in
N-m Output Torque
9.28
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SMC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SMC MSQB50R-XN is a rotary table actuator with a 190° rotation angle and 9.28 N-m output torque. It features a 2 in bore diameter, 1/8 in NPT port size, and an inch measurement system. This base model unit includes an end-mounted shock absorber.
