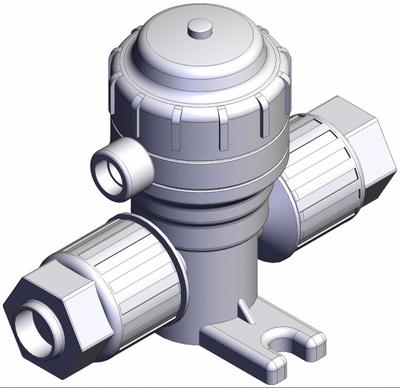

SMC Chemical Liquid Valve: 1/2 in, Air to Spring, Fail Closed, PFA, 1/8 in NPT - High-Purity Pneumatically-Actuated Diaphragm Valves
SMCHigh-Purity Pneumatically-Actuated Diaphragm Valves

SMC Chemical Liquid Valve: 1/2 in, Air to Spring, Fail Closed, PFA, 1/8 in NPT

The SMC LVQ40-Z13N-9 is a high-purity pneumatically-actuated diaphragm valve with a 1/2 in size, designed for chemical liquid applications. It features an air-to-spring actuator operation with a fail-closed position…

SKU 3G-OTH-449934

Brand
SMC
Item
Chemical Liquid Valve: 1/2 in, Air to Spring, Fail Closed, PFA, 1/8 in NPT
Category
High-Purity Pneumatically-Actuated Diaphragm Valves
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SMC
Manufacturer Part Number
LVQ40-Z13N-9
Type
Air to Spring, Fail Closed, PFA, 0°C to 60°C
NPT
1/8 in
Actuator Operation
Air to Spring
Fail Safe Position
Fail Closed
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SMC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SMC LVQ40-Z13N-9 is a high-purity pneumatically-actuated diaphragm valve with a 1/2 in size, designed for chemical liquid applications. It features an air-to-spring actuator operation with a fail-closed position, ensuring safety in the event of air supply loss. The valve is constructed from PFA and has a 1/8 in NPT connection, operating within a temperature range of 0°C to 60°C.
