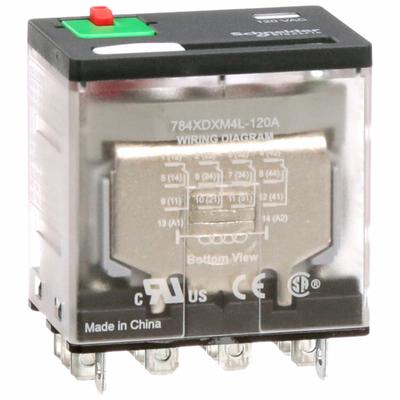

SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 120V AC, 4PDT

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the 784 Series, featuring a square base and Faston terminal electrical connection. It is rated for 15 A at 120V AC with a 4PDT contact configuration…

SKU 3G-OTH-40637

Brand
SCHNEIDER
Item
General Purpose Relay: Socket Mounted, 15 A Current Rating, 120V AC, 4PDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
784XDXM4L-120A
Series
784 Series
Type
4PDT, F Socket
AC
120V
Base Type
Square
Current Rating
15 A
Mounting Style
Socket
Operating Current
7.55 A at 250V (NC)
Electrical Connection
Faston Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the 784 Series, featuring a square base and Faston terminal electrical connection. It is rated for 15 A at 120V AC with a 4PDT contact configuration, and has an operating current of 7.55 A at 250V (NC). This relay uses an F socket and is identified by manufacturer part number 784XDXM4L-120A.
