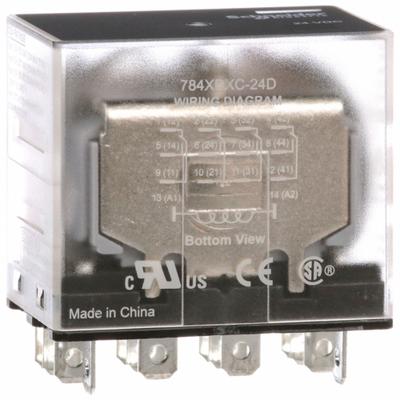

SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V DC, 4PDT - Socket-Mounted Relays
SCHNEIDERSocket-Mounted Relays

SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V DC, 4PDT

The SCHNEIDER 784 Series General Purpose Relay is a socket-mounted relay with a square base and Faston terminal electrical connection. It features a 4PDT contact configuration, a 24V DC coil, and a 15 A current…

SKU 3G-OTH-43707

Brand
SCHNEIDER
Item
General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V DC, 4PDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
784XDXC-24D
Series
784 Series
Type
4PDT, F Socket
DC
24V
Base Type
Square
Current Rating
15 A
Mounting Style
Socket
Operating Current
7.55 A at 250V (NC)
Electrical Connection
Faston Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER 784 Series General Purpose Relay is a socket-mounted relay with a square base and Faston terminal electrical connection. It features a 4PDT contact configuration, a 24V DC coil, and a 15 A current rating, with an operating current of 7.55 A at 250V for normally closed contacts. This relay is designed for socket mounting and is identified by manufacturer part number 784XDXC-24D.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
