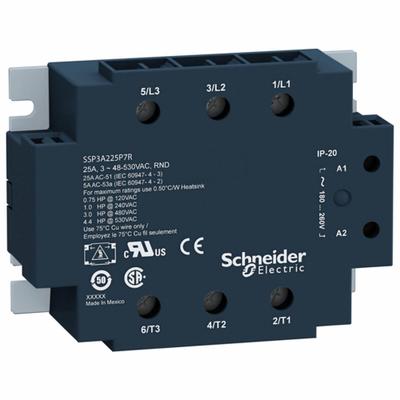

SCHNEIDER Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

SCHNEIDER Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR

The SCHNEIDER Solid State Relay: Surface Mounted (MPN SSP3A225P7T) is a panel-mounted, AC-output relay with a screw-clamp electrical connection. It features a finger-safe design, an input current of 7 to 20 mA, and…

SKU 3G-OTH-40315

Brand
SCHNEIDER
Item
Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
SSP3A225P7T
Type
SCR, AC Output
Finger Safe
Yes
Current Type
AC
Input Current
7 to 20 mA
Mounting Style
Panel
Output Voltage
48 to 530V AC
Max Output Current
25 A
Voltage/Current Type
AC Output
Electrical Connection
Screw Clamp
Maximum Output Current without Heat Sink
Not Recommended
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Solid State Relay: Surface Mounted (MPN SSP3A225P7T) is a panel-mounted, AC-output relay with a screw-clamp electrical connection. It features a finger-safe design, an input current of 7 to 20 mA, and an output voltage range of 48 to 530V AC. The maximum output current without a heat sink is not recommended.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
