SCHNEIDER Multihead Operator: Illuminated, 3 Button, Flush Profile - Illuminated Multihead Push-Button Operators
SCHNEIDERIlluminated Multihead Push-Button Operators

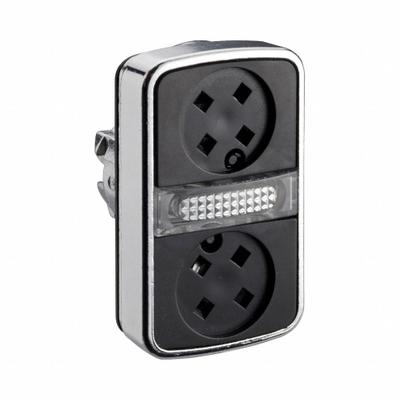

SCHNEIDER Multihead Operator: Illuminated, 3 Button, Flush Profile

The SCHNEIDER ELECTRIC Multihead Operator: Illuminated (SKU 48K658, MPN ZB4BW7A9) is a metallic illuminated multihead push-button operator from the XB4 series. It features three flush-profile buttons with a…

SKU 3G-OTH-31175

Brand
SCHNEIDER
Item
Multihead Operator: Illuminated, 3 Button, Flush Profile
Category
Illuminated Multihead Push-Button Operators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB4BW7A9
Series
XB4
Type
Flush Profile
Action
Momentary/Momentary/Momentary
Button
3
Mounting Size
22 mm
Push Button Material Type
Metallic
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER ELECTRIC Multihead Operator: Illuminated (SKU 48K658, MPN ZB4BW7A9) is a metallic illuminated multihead push-button operator from the XB4 series. It features three flush-profile buttons with a momentary/momentary/momentary action and a 22 mm mounting size.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER illuminated multihead push-button operators. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
