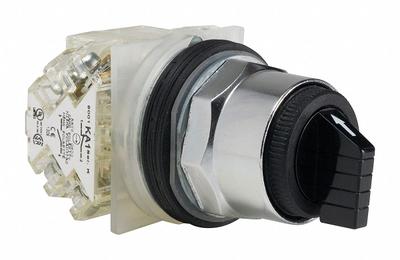

SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO/2NC - Selector Switches
SCHNEIDERSelector Switches

SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO/2NC

The SCHNEIDER 9001K Series Selector Switch (SKU 45C542, MPN 9001KS46BH2) is a 30 mm panel-mounting, non-illuminated selector switch with a short-handled knob and metallic bezel. It features a…

SKU 3G-OTH-36638

Brand
SCHNEIDER
Item
Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO/2NC
Category
Selector Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
9001KS46BH2
Series
9001K
Type
Short Lever, 2NO/2NC, Metallic
Cam
F
Action
Maintained/Maintained/Maintained
Positions
3
AC Contact Rating
1.5 A @ 480 V
DC Contact Rating
0.55 A @125 V
Operator Head Type
Short-Handled Knob
Operator Illumination
Non-Illuminated
Operator Head Material
Polycarbonate
Switch Bezel Material Type
Metallic
Switch Function @ 1st Position
On
Switch Function @ 2nd Position
Off
Switch Function @ 3rd Position
On
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER 9001K Series Selector Switch (SKU 45C542, MPN 9001KS46BH2) is a 30 mm panel-mounting, non-illuminated selector switch with a short-handled knob and metallic bezel. It features a maintained/maintained/maintained action across three positions (On/Off/On) with a Cam F operator, and is rated for AC contact at 1.5 A @ 480 V and DC contact at 0.55 A @ 125 V. The operator head is made of polycarbonate, and the switch is not rated for hazardous locations.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER selector switches. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
