SCHNEIDER General Purpose Relay: Socket Mounted, 6 A Current Rating, 24V AC, 4PDT - Socket-Mounted Relays
SCHNEIDERSocket-Mounted Relays

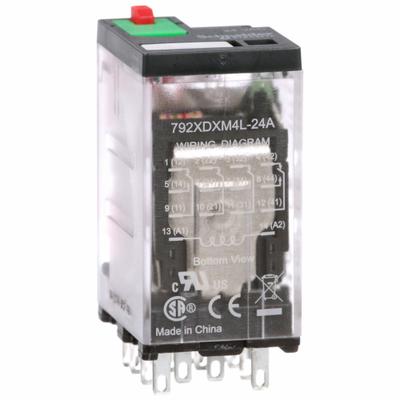

SCHNEIDER General Purpose Relay: Socket Mounted, 6 A Current Rating, 24V AC, 4PDT

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the 792 Series with a square base and plug-in mounting style. It features a 3 A DC-1 operating current (NC conforming to IEC) and a Faston connector…

SKU 3G-OTH-37241

Brand
SCHNEIDER
Item
General Purpose Relay: Socket Mounted, 6 A Current Rating, 24V AC, 4PDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
792XDXM4L-24A
Series
792 Series
Type
4PDT
AC
24V
Base Type
Square
Current Rating
6 A
Mounting Style
Plug-In
Pins/Terminals
14
Operating Current
3 A DC-1 (NC Conforming to IEC)
Electrical Connection
Faston Connector
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the 792 Series with a square base and plug-in mounting style. It features a 3 A DC-1 operating current (NC conforming to IEC) and a Faston connector for electrical connection. The relay has a 6 A current rating, operates at 24V AC, and is configured as 4PDT with 14 pins/terminals (MPN 792XDXM4L-24A).
