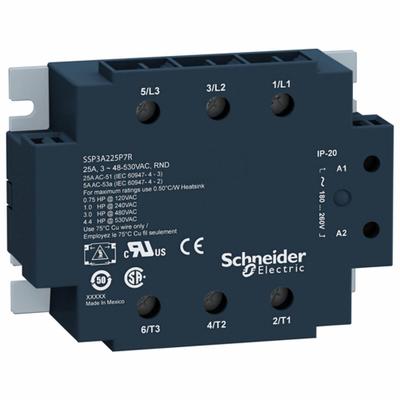

SCHNEIDER Solid State Relay: Surface Mounted, 50 A Max Output Current, SCR - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

SCHNEIDER Solid State Relay: Surface Mounted, 50 A Max Output Current, SCR

The SCHNEIDER Solid State Relay is a panel-mounted, surface-mounted relay with a Form A switch configuration and AC output. It operates with a DC input current of 24 to 35 mA and an output voltage of 48 to 530V AC…

SKU 3G-OTH-39443

Brand
SCHNEIDER
Item
Solid State Relay: Surface Mounted, 50 A Max Output Current, SCR
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
SSP3A250BDRT
Type
SCR, AC Output
Finger Safe
Yes
Current Type
DC
Input Current
24 to 35 mA
Mounting Style
Panel
Output Voltage
48 to 530V AC
Max Output Current
50 A
Switch Configuration
Form A
Voltage/Current Type
AC Output
Electrical Connection
Screw Clamp
Maximum Output Current without Heat Sink
Not Recommended
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Solid State Relay is a panel-mounted, surface-mounted relay with a Form A switch configuration and AC output. It operates with a DC input current of 24 to 35 mA and an output voltage of 48 to 530V AC. This relay features a screw clamp electrical connection and is finger safe, though operation without a heat sink is not recommended.
