SCHNEIDER Hermetically Sealed Relay: Socket Mounted, 5 A Current Rating, 120V AC - Socket-Mounted Relays
SCHNEIDERSocket-Mounted Relays

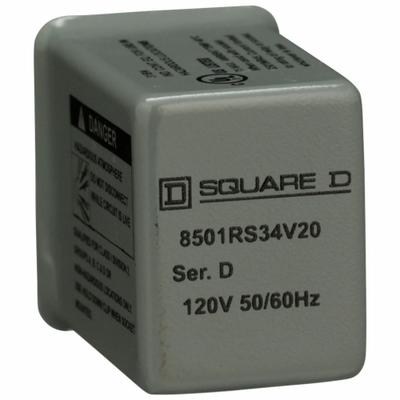

SCHNEIDER Hermetically Sealed Relay: Socket Mounted, 5 A Current Rating, 120V AC

The SCHNEIDER Hermetically Sealed Relay is a socket-mounted relay from the Square D 8501R Miniature Control Series. It features a square base with flat pins, a quick-connect electrical connection, and a 5 A current…

SKU 3G-OTH-40406

Brand
SCHNEIDER
Item
Hermetically Sealed Relay: Socket Mounted, 5 A Current Rating, 120V AC
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
8501RS34V20
Series
Square D 8501R Miniature Control Series
Type
4PDT, G Socket
AC
120V
Base Type
Square
Pin Shape
Flat
Current Rating
5 A
Mounting Style
Socket
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Hermetically Sealed Relay is a socket-mounted relay from the Square D 8501R Miniature Control Series. It features a square base with flat pins, a quick-connect electrical connection, and a 5 A current rating at 120V AC with 4PDT contacts. This relay uses a G socket and is identified by manufacturer part number 8501RS34V20.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
