SCHNEIDER General Purpose Relay: Socket Mounted, 6 A Current Rating, 24V AC, 4PDT - Socket-Mounted Relays

SCHNEIDERSocket-Mounted Relays

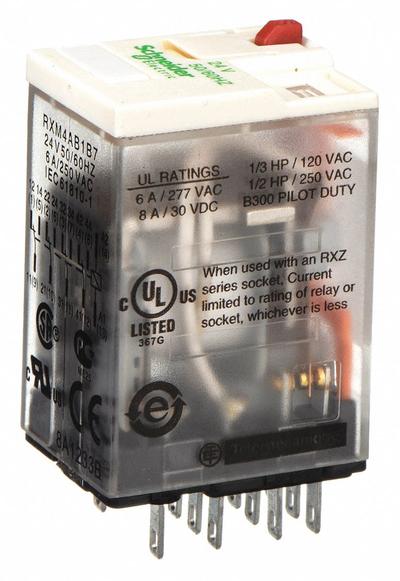

SCHNEIDER General Purpose Relay: Socket Mounted, 6 A Current Rating, 24V AC, 4PDT

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Harmony™ RXM Series, featuring a square base with flat pins and a plug-in mounting style. It has a 6 A current rating, 24V AC coil voltage, and…

SKU 3G-OTH-37268

Brand

SCHNEIDER

Item

General Purpose Relay: Socket Mounted, 6 A Current Rating, 24V AC, 4PDT

Category

Socket-Mounted Relays

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

SCHNEIDER

Manufacturer Part Number

RXM4AB1B7

Series

Harmony™ RXM Series

Type

4PDT

AC

24V

Base Type

Square

Pin Shape

Flat

Current Rating

6 A

Mounting Style

Plug-In

Pins/Terminals

14

Electrical Connection

Quick-Connect

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

SCHNEIDER Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Harmony™ RXM Series, featuring a square base with flat pins and a plug-in mounting style. It has a 6 A current rating, 24V AC coil voltage, and 4PDT contact configuration with 14 terminals, using quick-connect electrical connections (MPN RXM4AB1B7).
