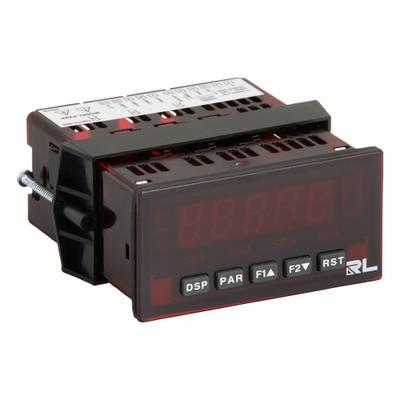

RED LION Process Input Meter: 99,999 Display Span - Min, -19,999 Display Span - Max - DC Voltage Digital Panel Meters
RED LIONDC Voltage Digital Panel Meters

RED LION Process Input Meter: 99,999 Display Span - Min, -19,999 Display Span - Max

The RED LION PAX Series Process Input Meter (PAXP0010) is a DC voltage digital panel meter with a 99,999 display span and a -19,999 minimum display span. It features 0.01% accuracy, a red LED display, True RMS AC…

SKU 3G-OTH-28771

Brand
RED LION
Item
Process Input Meter: 99,999 Display Span - Min, -19,999 Display Span - Max
Category
DC Voltage Digital Panel Meters
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RED LION
Manufacturer Part Number
PAXP0010
Series
PAX
Type
- Min, -19,999 Display Span - Max, PAXP0010, PAX
Accuracy
0.01%
Includes
Mounting Clip
Interface
RS-232
Input Type
DC Voltage
Product Type
Process Input Meter
NEMA Enclosure Rating
4X
AC Magnitude Calculation
True RMS
Terminal Connection Type
Cage Clamp
Digital Display Screen Type
LED
Digital Display Screen Color
Red
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RED LION Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RED LION PAX Series Process Input Meter (PAXP0010) is a DC voltage digital panel meter with a 99,999 display span and a -19,999 minimum display span. It features 0.01% accuracy, a red LED display, True RMS AC magnitude calculation, an RS-232 interface, cage clamp terminal connections, and a NEMA 4X enclosure rating. Includes a mounting clip.
